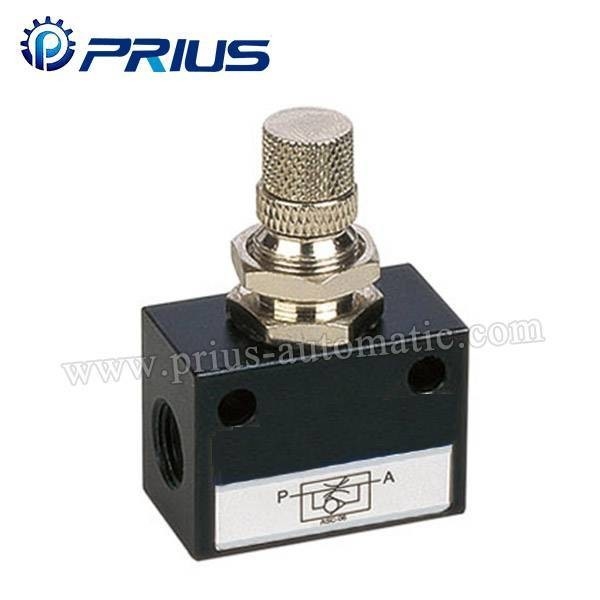

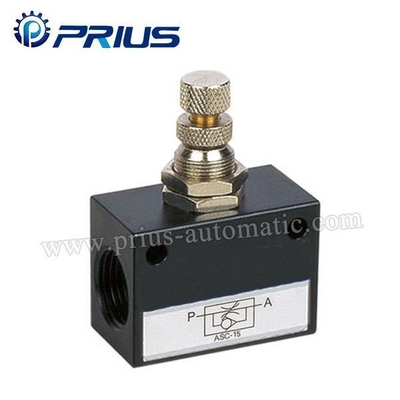

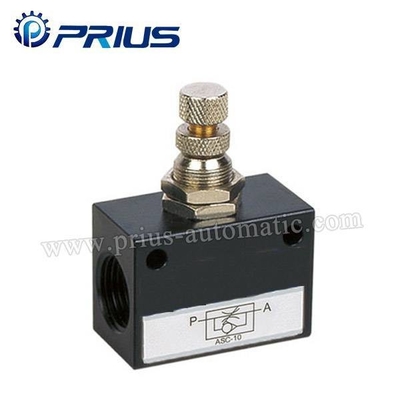

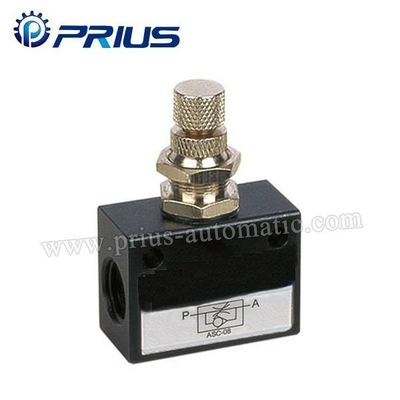

ASC/RE series
|
Product Details:
|
Detailed Product Description
| Short Description: | Array,Array,Array,Air,0~0.95MPa,0~60℃ | Product Information: | Negotiation,10PCS,10000 Piece/Pieces Per Month,NingBo Or ShangHai,Array |
|---|
| Accurate Type | Ordinary Type | ||||||||||
| Model | |||||||||||
| ASC-06 | ASC-08 | ASC-10 | ASC-15 | RE-01 | RE-02 | RE-03 | RE-04 | ||||
| Port Size | G1/8″ | G1/4″ | G3/8″ | G1/2″ | G1/8″ | G1/4″ | G3/8″ | G1/2″ | |||
| Working Medium | Air | ||||||||||
| Working-pressure Range | 0~0.95MPa | ||||||||||
| Operating Temperature | 0~60℃ | ||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | |
| Model / symbol | ||||||||||||
| ASC-06 | 22 | 32 | G1/8″ | 22 | 27 | 4.3 | 49.7 | 56.5 | M6×0.5 | M12×0.75 | 12 | 18 |
| ASC-08 | 26 | 36 | G1/4″ | 22 | 27 | 4.3 | 49.7 | 56.5 | M6×0.5 | M12×0.75 | 12 | 18 |
| ASC-10 | 28 | 40 | G3/8″ | 25 | 30 | 4.3 | 52.7 | 59.5 | M6×0.5 | M12×0.75 | 13 | 22 |
| ASC-15 | 28 | 40 | G1/2″ | 30 | 35 | 4.3 | 58.7 | 65.5 | M6×0.5 | M12×0.75 | 13.5 | 26 |
