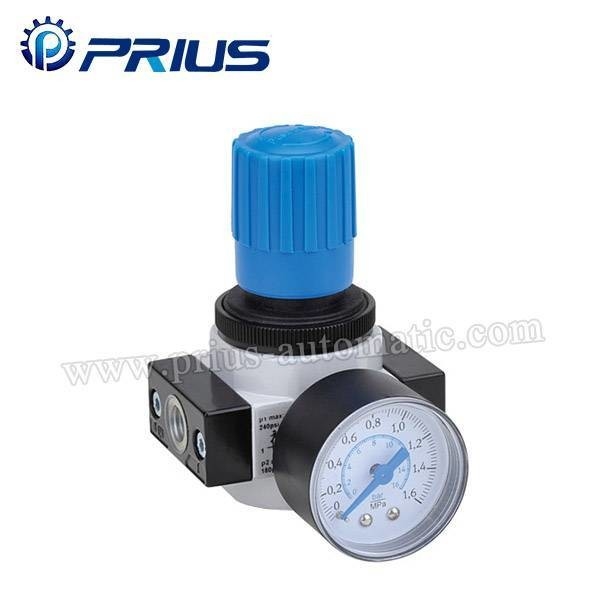

XOR regulator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Short Description: | Ordering Code Specification Size MINI MIDI MAXI Working Pressure:12bar XOR-1/8-MINI XOR-1/4-MINI XOR-3/8-MINI XOR-3/8-MIDI XOR-1/2-MIDI XOR-3/4-MIDI XOR-3/4-MAXI XOR-1-MAXI Working Pressure:7bar XOR-1/8-7-MINI XOR1/4-7-MINI XOR-3/8-7-MINI XOR-3/8-7-MIDI XO | FOB Price: | Negotiation |
|---|---|---|---|
| Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Ordering Code
Specification
| Size | MINI | MIDI | MAXI | ||||||
| Working Pressure:12bar | XOR-1/8-MINI | XOR-1/4-MINI | XOR-3/8-MINI | XOR-3/8-MIDI | XOR-1/2-MIDI | XOR-3/4-MIDI | XOR-3/4-MAXI | XOR-1-MAXI | |
| Working Pressure:7bar | XOR-1/8-7-MINI | XOR1/4-7-MINI | XOR-3/8-7-MINI | XOR-3/8-7-MIDI | XOR-1/2-7-MIDI | XOR-3/4-7-MIDI | XOR-3/4-7-MAXI | XOR-1-7-MAXI | |
| Manometer | 0~12bar | OMA-40-16-1/8 | OMA-50-16-1/4 | ||||||
| 0~7bar | OMA-40-10-1/8 | OMA-50-10-1/4 | |||||||
| Medium | Filter Compressed Air(Lubricated or Unlubricated) | ||||||||
| Features of Structure | MINI/MIDI:Diaphragm type regulator;MAXI:Piston Regulator | ||||||||
| Mounting Type | Pipe/Foot /Plate Mounting | ||||||||
| Assembly Position | Any | ||||||||
| Connection | G1/8″ | G1/4″ | G3/8″ | G3/8″ | G1/2″ | G3/4″ | G3/4″ | G1″ | |
| Standard Nominal Flow Rate | XOU-… | 800 | 1500 | 1700 | 3200 | 3500 | 3500 | 11000 | 11500 |
| XOU-…-7 | 1000 | 1500 | 1800 | 3300 | 4000 | 4500 | 12000 | 12500 | |
| Primary Pressure | 1~16bar | ||||||||
| Working Pressure | 0.5~12bar/0.5~7bar | ||||||||
| Temperature Range | 0~60℃ | ||||||||
| Materials Information | Housing:Zinc die-casting;Sealing:NBR;Adjusting knob:POM | ||||||||

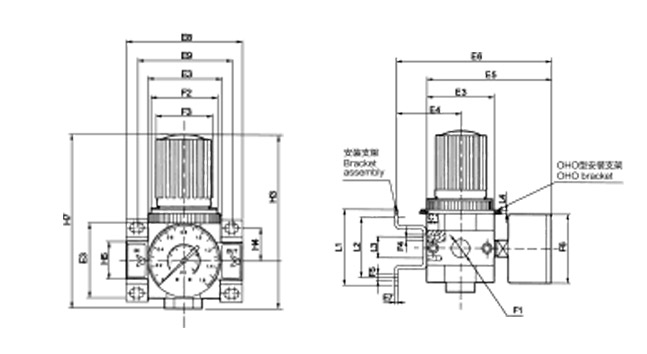

Overall Dimension
Dimension Sheet
| Model | E3 | E4 | E5 | E6 | E8 | E9 |
| XOR-…-MINI | 40 | 39 | 76 | 95 | 64 | 52 |
| XOR-…-MIDI | 55 | 47 | 93 | 112 | 85 | 70 |
| XOR-…-MAXI | 66 | 53 | 104 | 124 | 96,116 | 80,91 |
| Model | F1 | F2 | F3 Φ | F4 | F5 Φ |
| XOR-…-MINI | G1/8″,G1/4″,G3/8″ | M36x1.5 | 31 | M4 | 4.5 |
| XOR-…-MIDI | G1/8″,G1/2″,G3/4″ | M52x1.5 | 50 | M5 | 5.5 |
| XOR-…-MAXI | G3/4″,G1″ | M36x1.5 | 31 | M5 | 5.5 |
| Model | F6 Φ | L1 | L2 | L3 | L4 | H3 | H4 | H7 |
| XOR-…-MINI | 40 | 44 | 35 | 11 | Max.3 | 69 | 17.5 | 96 |
| XOR-…-MIDI | 52 | 71 | 60 | 22 | Max.5 | 98 | 24.5 | 96 |
| XOR-…-MAXI | 63 | 71 | 60 | 22 | Max.4 | 80 | 24.5 | 96 |
