XOF filter

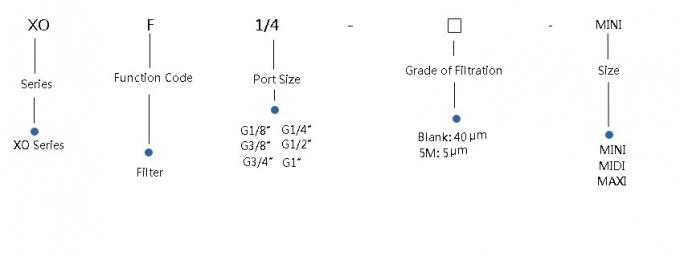

Ordering Code

Specification

Size		MINI			MIDI			MAXI
Manual Drain	40μm	XOF-1/8-MINI	XOF-1/4-MINI	XOF-3/8-MINI	XOF-3/8-MIDI	XOF-1/2-MIDI	XOF-3/4-MIDI	XOF-3/4-MAXI	XOF-1-MAXI
	5μm	XOF-1/8-5M-MINI	XOF-1/4-5M-MINI	XOF-3/8-5M-MINI	XOF-3/8-5M-MIDI	XOF-1/2-5M-MIDI	XOF-3/4-5M-MIDI	XOF-3/4-5M-MAXI	XOF-1-5M-MAXI
Medium		Compressed Air
Features of Structure		Sintered filter with water separator
Mounting Type		Pipe mounting or foot mounting
Assembly Position		Vertical ±5o
Connection		G1/8″	G1/4″	G3/8″	G3/8″	G1/2″	G3/4″	G3/4″	G1″
Standard Nominal Flow Rate	XOU-…	1000	1200	1400	2700	3000	3000	5000	5300
	XOU-…-5M	600	950	1100	1800	1900	1900	3200	3300
Primary Pressure	Manual Drain	1~16bar
Grade of Filtration		40 μm/5 μm
Capacity of Condensate Fluid		22 ml
Temperature Range		0~60℃
Materials Information		Housing:Zinc die-casting;Filter bowl C;Metal bowl guard:Aluminium alloy;Sealing:NBR

Product Explain

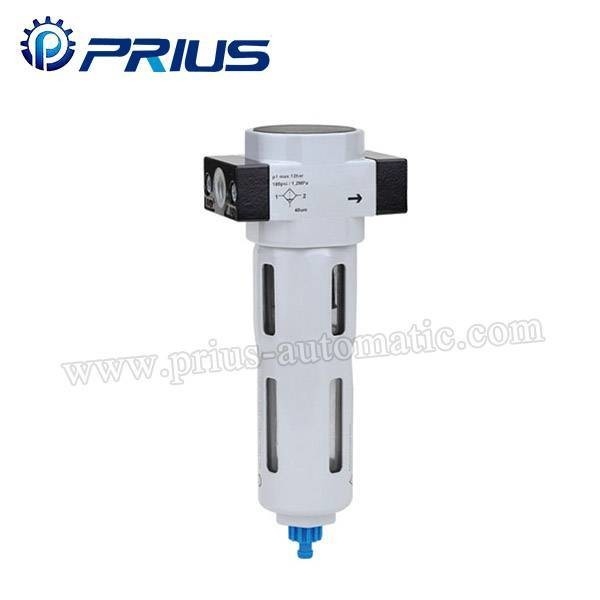

The XOF with water separator cleans the compressed air of fluid oil, condensation and dirt particles, for special application, the standard 40μm filter element may easily be replaced by a 5μm filter element.

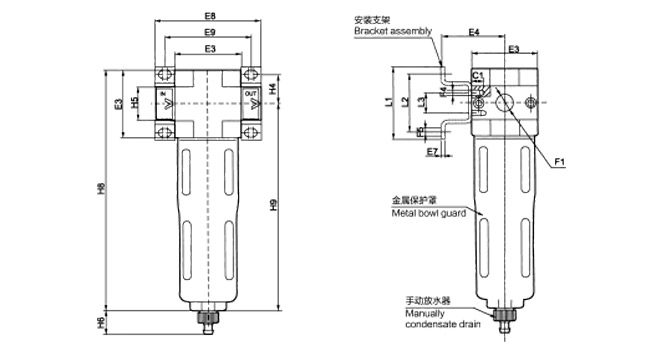

Overall Dimension

Dimension Sheet
