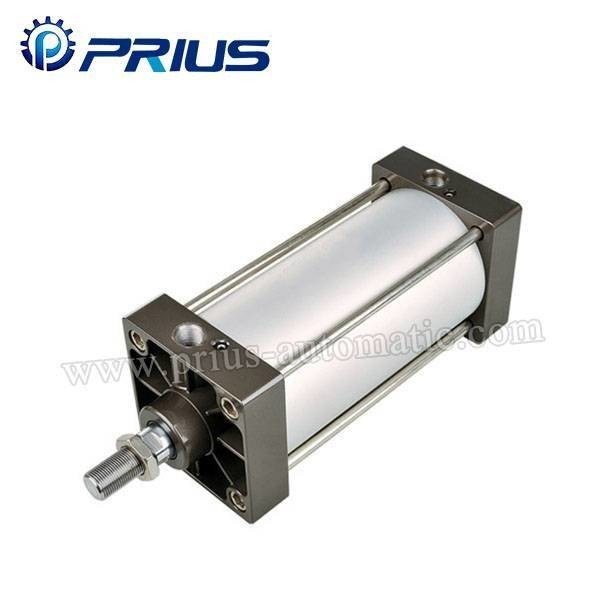

SC/SU series Standard Cylinder

SC/SU series Standard Cylinder
SC/SU series Standard Cylinder SC/SU series Standard Cylinder SC/SU series Standard Cylinder

Large Image :  SC/SU series Standard Cylinder Get Best Price

Product Details:
Payment & Shipping Terms:
Payment Terms: T/T,L/C,PAYPAL
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Bore: 32,40,50,63,80,100,125,160,200,250,320 Motion Pattern: Double Action
Working Medium: Air Fixed Type: Normal Type FA,Type FB,Type CA,Type CB,Type LB,Type TC,Type TC-M
Working Pressure Range: 0.1~0.9MPa Ensured Pressure Resistance: 1.35MPa
Operating Temperature Range: 0~70℃ Operating Speed Range: 50~800mm/s
Buffer Type: Adjustable Buffer Buffer Stroke: 20,26,45,52,66
Port Size: G1/8,G1/4 FOB Price: Negotiation
Min.Order Quantity: 10PCS Port: NingBo Or ShangHai

Product Detail

Product Tags

Ordering Code


Specification

Bore (mm) 32 40 50 63 80 100 125 160 200 250 320
Motion Pattern Double Action
Working Medium Air
Fixed Type Normal type FA/Type FB/Type CA/Type CB/Type LB/Type TC/Type TC-M/Type
Working Pressure Range 0.1~0.9MPa
Ensured Pressure Resistance 1.35MPa
Operating Temperature Range 0~70℃
Operating Speed Range 50~800mm/s
Buffer Type Adjustable Buffer
Buffer Stroke 20mm 26mm 45mm 52mm 66mm
Port Size G1/8″ G1/4″ G3/8″ G1/2″ G3/4” G1″

Stroke

Bore (mm) Standard Stroke Max.Stroke Permissible Stroke
32 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 1000 2000
40 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 1200 2000
50 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1200 2000
63 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
80 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
100 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
125 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
160 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
200 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
250 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
320 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000

Parts

NO. Designation NO. Designation
1 Piston Rod Nut 10 Wear Ring
2 Piston Rod 11 Barrel
3 Front Cover Seal Ring 12 Buffer Seal Ring
4 Bearing 13 Damping Adjustable Screw
5 Front Cover 14 Back Over
6 Buffering O-ring 15 Hex Socket Screw
7 Pipe Wall O-ring 16 Tie Rod Nut
8 Piston O-ring 17 Tie Rod
9 Piston 18 Piston Rod O-ring

Cylinder Theory Output

Cylinder
Inside
Diameter		 External
Diameter
of Piston Rod		 Motion Pattern Compression
Area
(cm2)		 Air Pressure (Kgf/cm2)
1 2 3 4 5 6 7 8 9
32 12 Double Action Press Side 8.04 8.04 16.08 24.12 32.16 40.20 48.24 56.28 64.32 72.36
Pull Side 6.90 6.90 13.80 20.07 27.60 34.50 41.40 48.30 55.20 62.10
40 16 Press Side 12.56 12.56 25.12 37.68 50.24 62.80 75.36 87.92 100.24 113.04
Pull Side 10.55 10.55 21.10 31.65 42.20 52.75 63.60 73.85 84.40 94.95
50 20 Press Side 19.63 19.63 39.26 58.89 78.52 98.15 117.78 137.41 157.04 176.67
Pull Side 16.49 16.49 32.98 49.47 65.96 82.45 98.94 115.43 139.92 148.41
63 20 Press Side 31.17 31.17 62.34 93.51 124.68 155.85 187.02 218.19 249.36 280.53
Pull Side 28.03 28.03 56.06 84.09 122.12 140.15 168.18 196.21 224.24 252.27
80 25 Press Side 50.26 50.26 100.52 150.78 201.04 251.30 301.56 351.82 402.08 452.34
Pull Side 45.36 45.36 90.72 136.08 181.44 226.80 272.16 317.52 326.88 408.24
100 25 Press Side 78.53 78.53 157.06 235.59 314.12 392.65 471.18 428.82 628.24 706.77
Pull Side 71.47 71.47 142.94 214.41 285.88 357.35 428.82 500.29 517.76 643.23
125 32 Press Side 122.72 122.72 245.44 368.16 490.88 613.60 736.32 859..04 981.76 1104.48
Pull Side 114.68 114.68 229.36 344.04 458.72 573.40 688.08 802.76 917.44 1032.12
160 40 Press Side 201.06 201.06 402.12 603.18 804.24 1005.30 1206.36 1407.42 1608.48 1809.54
Pull Side 188.49 188.49 376.98 565.47 753.96 942.45 1130.94 1319.43 1507.92 1696.41
200 40 Press Side 314.16 314.16 628.32 942.48 1256.64 1570.80 1884.96 2199.12 2513.28 2827.44
Pull Side 301.57 301.57 603.14 904.71 1206.28 1507.80 1809.42 2100.99 2412.56 2714.13
250 50 Press Side 49060 9812 14718 19624 24530 29436 34342 39248
Pull Side 47100 9420 14130 18840 23550 28260 32970 37660
320 63 Press Side 80384 16077 24115 32154 40192 48230 56269 64307
Pull Side 77268 15454 23180 30907 38634 46361 54088 61814

Overall Dimension
Dimension Sheet

Bore A A1 A2 B C D E F G H I J K
32 142 190 187 48 94 30 28 16 27.5 22 17 6 M10×1.25
40 159 213 207 54 105 35 32 18 29 24 19 7 M12×1.25
50 175 244 233 69 105 40 42 25 30 32 24 8 M16×1.5
63 190 259 250 69 120 40 40 24 31.5 32 24 8 M16×1.5
80 214 300 286 86 128 45 53 30 35.5 40 30 10 M20×1.5
100 229 320 308 91 138 45 55 32 36 40 30 10 M20×1.5
125 279 398 372.5 119 160 60 74 45 46 54 41 13.5 M27×2
160 332 484 448 152 180 65 94 58 50 72 55 18 M36×2
200 337 514 472 157 180 75 100 57 50 72 55 18 M36×2
250 389 - - 189 200 90 122 67 54 84 65 21 M42×2
320 436 -
