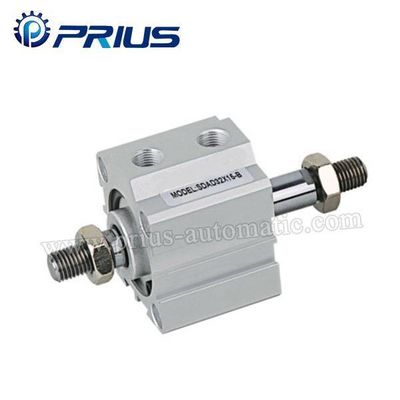

SDA compact cylinder

SDA compact cylinder
SDA compact cylinder SDA compact cylinder SDA compact cylinder

Large Image :  SDA compact cylinder Get Best Price

Product Details:
Payment & Shipping Terms:
Payment Terms: T/T,L/C,PAYPAL
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Short Description: Ordering Code Specification Bore(mm) 12 16 20 25 32 40 50 63 8 100 Motion Pattern Double Action Single Action Extrusion Type/ Single Action Drawing-in Type _ Working Medium Air Operating Pressure Range Double Action 0.1~0.9MPa Single Action 0.2~0.9MPa _ En FOB Price: Negotiation
Min.Order Quantity: 10PCS Port: NingBo Or ShangHai

Product Detail

Product Tags

Ordering Code未标题-1.jpg

Specification

Bore(mm) 12 16 20 25 32 40 50 63 8 100
Motion Pattern Double Action
Single Action Extrusion type/ Single Action Drawing-in Type _
Working Medium Air
Operating Pressure Range Double Action 0.1~0.9MPa
Single Action 0.2~0.9MPa _
Ensured Pressure Resistance 1.35MPa
Operating Temperature Range -5~70
Operating Speed Range Double Action 30~50mm/s 30~350mm/s 30~250mm/s
Single Action 100~50mm/s -
Buffer Type Fixed Type Buffer
Port Size M5×0.8 G1/8″ G1/4″ G3/8″

Stroke

Bore(mm) 12 16 20 25 32 40 50 63 80 100
Double Action Without Magnet Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade
Attach Magnet Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 100mm Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade
Single Action Without Magnet Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 -
Attach Magnet Every 5mm is grouped
as one grade		 Every 5mm is grouped
as one grade		 -
MAX.Stroke 60mm 100mm 120mm 130mm

Internal Structure

未标题-5.jpg NO. Designation NO. Designation
1 Back Over 7 Anti-crash Buffer
2 C Type Buckle Ring 8 Barrel
3 O-ring 9 Front Cover Seal Ring
4 Anti-crash Buffer 10 Front Cover
5 Pistion 11 Piston Rod
6 Pistion O-Ring 12 Piston Rod Nut
未标题-6.jpg NO. Designation NO. Designation
1 Back Over 7 Barrel
2 C Type Buckle Ring 8 Silencer
3 Anti-crash Buffer 9 Cover O-ring
4 Pistion 10 Front Cover
5 Pistion O-Ring 11 Piston Rod
6 Compressed Spring
未标题-7.jpg NO. Designation NO. Designation
1 Back Over 7 Pistion
2 C Type Buckle Ring 8 Pistion O-Ring
3 Cover O-ring 9 Anti-crash Buffer
4 Silencer 10 Front Cover Seal Ring
5 Barrel 11 Front Cover
6 Compressed Spring 12 Piston Rod

Overall Dimension

Bore B2 E F G H I J K2 L M V W
12 17 16 4 1 10 8 4 M5×0.8 10.2 2.8 6 5
16 17.5 16 4 1.5 10 8 4 M5×0.8 11 2.8 6 5
20 20.5 19 4 1.5 13 10 5 M6 ×1.0 16 2.8 8 6
25 23 21 4 2 15 12 6 M8×1.25 17 2.8 10 8
32 25 22 4 3 15 17 6 M10×1.25 22 2.8 12 10
40 35 32 4 3 25 19 8 M14×1.5 28 2.8 16 14
50 37 33 5 4 25 27 11 M18×1.5 38 2.8 20 17
63 37 33 5 4 25 27 11 M18×1.5 40 2.8 20 17
80 44 39 6 5 30 32 13 M22×1.5 45 4 25 22
100 50 45 7 5 35 36 13 M26×1.5 55 4 32 27

Overall Dimension
Dimension Sheet

Type Standard Type Attach Magnet D E F G K1 L M N1 N3 M
Bore A B1 C A B1 C Stroke≤10 Stroke>10
12 22 5 17 32 5 27 - 6 4 1 M3×0.5 10.2 2.8 6.3 6 M5×0.8
16 24 5.5 18.5 34 5.5 28.5 - 6 4 1.5 M3×0.5 11 2.8 7.3 6.5 M5×0.8
20 25 5.5 19.5 35 5.5 29.5 36 8 4 1.5 M4×0.7 15 2.8 7.5 - M5×0.8
25 27 6 21 37 6 31 42 10 4 2 M5×0.8 17 2.8 8 - M5×0.8
32 31.5 7 24.5 41.5 7 34.5 50 12 4 3 M6×1 22 2.8 9 - G1/8″
40 33 7 28 43 7 36 58.5 12 4 3 M8×1.25 28 2.8 10 - G1/8″
50 37 9 28 47 9 38 71.5 15 5 4 M10×1.5 38 2.8 10.5 - G1/4″
63 41 9 32 51 9 42 84.5 15 5 4 M10×1.5 40 2.8 11.8 - G1/4″
80 52 11 41 62 11 51 104 15 20 6 5 M14 ×1.5 45 4 14.5 - G3/8″
100 63 12 51 73 12 61 124 18 20 7 5 M18 ×1.5 55 4 20.5 - G3/8″

Bore P1 P3 P4 R S T1 T2 U V W X Y
12 Double Sides:Φ6.5 /Thread: M5×0.8/ Through Ports:Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 Double Sides:Φ6.5 /Thread: M5×0.8/ Through Ports:Φ4.2 12 4.5 - 29 19.8 28 1.6 6 5 - -
20 Double Sides:Φ6.5 /Thread: M5×0.8/ Through Ports:Φ4.2 14 4.5 2 34 24 2.1 8 6 11.3 10
25 Double Sides:Φ8.2 /Thread: M6×1.0/ Through Ports:Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 Double Sides:Φ8.2 /Thread: M6×1.0/ Through Ports:Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 Double Sides:Φ10 /Thread: M8×1.25/ Through Ports:Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16
50 Double Sides:Φ11 /Thread: M8×1.25/ Through Ports:Φ6.5 25 8.5 9.5
