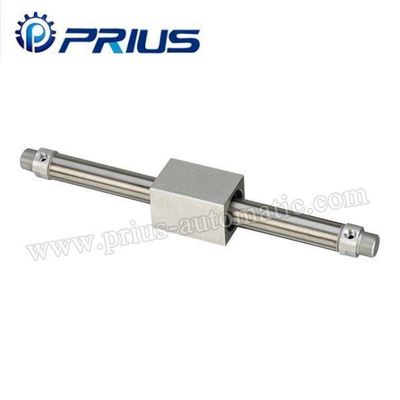

CY1B/CY1S series rodless cylinder
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Short Description: | Array,Air,Double Action,1.05Mpa,0.7Mpa,0.18Mpa,-10~60℃(No Freeze),50~400mm/s,Rubber Buffer,Array,No Required,Array | FOB Price: | Negotiation |
|---|---|---|---|
| Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Ordering Code
Specification
| Bore (mm) | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
| Fluid | Air | ||||||||
| Motion Pattern | Double Action | ||||||||
| Ensured Pressure Resistance | 1.05Mpa | ||||||||
| Max.Working Pressure | 0.7Mpa | ||||||||
| Min.Working Pressure | 0.18Mpa | ||||||||
| Ambient & Medium Temp. | -10~60℃(No freeze) | ||||||||
| Working Frequency | 50~400mm/s | ||||||||
| Buffer | Rubber Buffer | ||||||||
| Stroke Allowable Error | 0~250:+1.0 0 | 251~1000:+1.4 0 | 1001~:+1.8 0 | ||||||
| Lubricate | No required | ||||||||
| Port Size | M5×0.8 | Rc(PT)1/8 | Rc(PT)1/4 | ||||||
Overall Dimension
Dimension Sheet
| Model | Stroke Range | ΦD | Φd | A | ΦB | C | HT | G | GP | H | HA | HG | HP | HS | T | JXK |
| C□Y1S15 | ~750 | 16.6 | 12 | 7.5 | 9.5 | 5 | 21 | 6.5 | 52 | 40 | 29 | 13 | 39 | 15 | 12.5 | M6×1.0×9.5 |
| C□Y1S20 | ~1500 | 21.6 | 16 | 10 | 9.5 | 5.2 | 20 | 8.5 | 62 | 46 | 36 | 17 | 45 | 25.5 | 16.5 | M6×1.0×9.5 |
| C□Y1S25 | ~1500 | 26.4 | 16 | 10 | 11 | 6.5 | 20 | 8.5 | 40 | 54 | 40 | 20 | 53 | 23 | 16.5 | M8×1.25×10 |
| C□Y1S32 | ~1500 | 33.6 | 20 | 12.5 | 14 | 8 | 24 | 9.5 | 86 | 66 | 46 | 24 | 64 | 27 | 18.5 | M10×1.5×15 |
| C□Y1S40 | ~1500 | 41.6 | 25 | 12.5 | 14 | 8 | 25 | 10.5 | 104 | 76 | 57 | 25 | 74 | 30 | 20.5 | M10×1.5×15 |
| Model | L | LD | M | MM | NN | (N) | P | PA | PB | PW | QW | Q | S | TT | Z | W |
| C□Y1S15 | 60 | 5.6 | 8 | M5×0.8 | M8×1.0 | 7.5 | M5×0.8 | 30 | 50 | 75 | 30 | 75 | 62 | 22.5 | 97 | 72 |
| C□Y1S20 | 70 | 5.6 | 10 | M6×1.0 | M10×1.0 | 9.5 | 1/8 | 40 | 70 | 90 | 38 | 90 | 73 | 25.5 | 115 | 87 |
| C□Y1S25 | 70 | 7 | 10 | M6×1.0 | M14×1.5 | 11 | 1/8 | 40 | 70 | 100 | 42 | 90 | 73 | 25.5 | 115 | 97 |
| C□Y1S32 | 85 | 8.7 | 12 | M8×1.25 | M20×1.5 | 11.5 | 1/8 | 40 | 71 | 22 | 50 | 110 | 91 | 28.5 | 138 | 119 |
| C□Y1S40 | 95 | 8.7 | 12 | M8×1.25 | M20×1.5 | 10.5 | 1/8 | 65 | 104 | 145 | 64 | 120 | 99 | 35.5 | 155 | 142 |
| Model | Stroke Range | □P | □B | □C | ΦD | ΦE (h8) | F | G | H | I | K | HL | MMXJ |
| C□Y1B20 | ~2000 | 1/8 | 36 | - | 22.8 | - | 13 | 8 | 20 | 28 | 8 | 66 | M4×0.7×0.6 |
| C□Y1B25 | ~2000 | 1/8 | 46 | - | 27.8 | - | 13 | 8 | 20.5 | 34 | 10 | 70 | M5×0.8×8 |
| C□Y1B32 | ~2000 | 1/8 | 60 | - | 35 | - | 16 | 9 | 22 | 40 | 15 | 80 | M6×1.0×8 |
| C□Y1B40 | ~2000 | 1/4 | 70 | - | 43 | - | 16 | 11 | 29 | 50 | 16 | 92 | M6×1.0×10 |
| C□Y1B50 | ~2000 | 1/4 | 86 | 32 | 53 | 30 | 2 | 14 | 33 | 58.2 | 25 | 110 | M8×1.25×12 |
| C□Y1B63 | ~2000 | 1/4 | 100 | 38 | 66 | 32 | 2 | 14 | 33 | 72.2 | 26 | 122 | M8×1.25×12 |
| Model | N | NA | NB | NN | QXR | S | TB | TCXR | W | X | ZZ |
| C□Y1B20 | 15 | 24 | 13 | M20×1.5 | - | 106 | - | - | 50 | 25 | 132 |
| C□Y1B25 | 15 | 30 | 13 | M26×1.5 | - | 111 | - | - | 50 | 30 | 137 |
| C□Y1B32 | 17 | 36 | 15 | M26×1.5 | - | 124 | - | - | 50 | 40 | 156 |
| C□Y1B40 | 21 | 46 | 19 | M32×2.0 | - | 150 | - | - | 60 | 40 | 182 |
| C□Y1B50 | 25 | 55 | 23 | - | M8×1.25×16 | 176 | 14 | M12×1.25×7.5 | 60 | 60 | 180 |
| C□Y1B63 | 25 | 69 | 23 | - | M10×1.5×11.5 | 188 | 14 | M14×1.5×11.5 | 70 | 70 | 192 |
