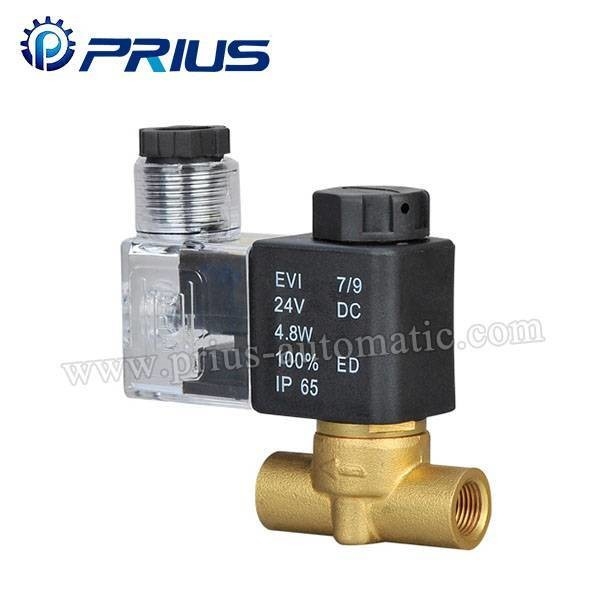

XTF Small Copper Two Way Solenoid Valve , DC12V...
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Copper Valve | Working Medium: | Air/oxygen/rare Gases |
|---|---|---|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
| Temperature Range: | -5~60℃ | Port Size: | G1/4″ |
| Net Weight: | 0.4kg/pcs | Voltage: | DC12V,DC24V |
| Class Of Insulation: | F Class | Cv: | 0.89 |
| Description: | XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve | Specification: | 1. The Normal Use Of More Than 10 Million Times. 2. Using Import Coil, Low Power Consumption. 3. Quick Response, Good App... |
| FOB Price: | Negotiation | Min.Order Quantity: | 10PCS |
| Port: | NingBo Or ShangHai |
Detailed Product Description
| Name: | Copper Valve | Working Medium: | Air/oxygen/rare Gases |
|---|---|---|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
| Temperature Range: | -5~60℃ | Port Size: | G1/4″ |
| Net Weight: | 0.4kg/pcs | Voltage: | DC12V,DC24V |
| Class Of Insulation: | F Class | Cv: | 0.89 |
XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve
Specifiction
1. The normal use of more than 10 million times.
2. Using import coil, low power consumption.
3. Quick response, good appearance
| Port Size | M5 | G1/8″ | ||
| Body Material | Brass | |||
| Control Model | Direct Drive | |||
| Sealing Principle | Soft Nature | |||
| Installation | M3 | |||
| Weight | 163g | |||
| Operating Pressure | 0~10bar | |||
| Working Medium | Air : -10~60℃ Water : 1~60℃ Oil : -5~60℃ | |||
| Rated Voltage | DC12V DC24V AC110V AC220V | |||
| Allow Voltage Fluctuation Range | ±10％ | |||
| Shortest Excitation Time | 0.05S | |||
Internal Structure Parts
| NO. | Designation | Material | Amount |
| 1 | Iron Nut | QC235 | 1 |
| 2 | Gasket | QC235 | 1 |
| 3 | Coil Assembly | 1 | |
| 4 | Guide Head Assembly | 1 | |
| 5 | Valve Body | Brass | 1 |
Overall Dimension
