Diaphragm Pneumatic Solenoid Valve MP- 08 For M...
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Air Solenoid Valve 12v | Working Medium: | Air/oxygen/rare Gases |
|---|---|---|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
| Temperature Range: | -5~60℃ | Port Size: | G1/4″ |
| Net Weight: | 0.4kg/pcs | Voltage: | DC12V,DC24V |
| Class Of Insulation: | F Class | Cv: | 0.89 |
| FOB Price: | Negotiation | Min.Order Quantity: | 10PCS |
| Port: | NingBo Or ShangHai |
Detailed Product Description
| Name: | Air Solenoid Valve 12v | Working Medium: | Air/oxygen/rare Gases |
|---|---|---|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
| Temperature Range: | -5~60℃ | Port Size: | G1/4″ |
| Net Weight: | 0.4kg/pcs | Voltage: | DC12V,DC24V |
| Class Of Insulation: | F Class | Cv: | 0.89 |

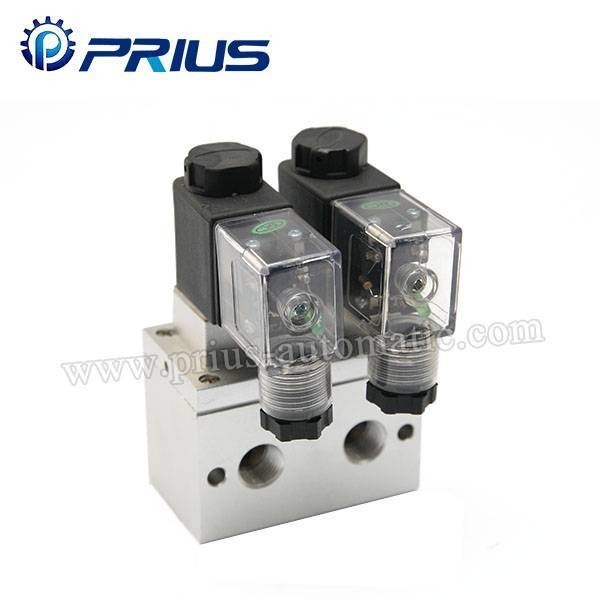

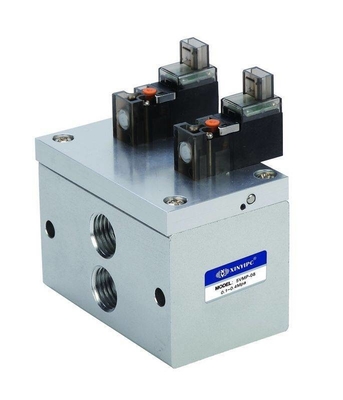

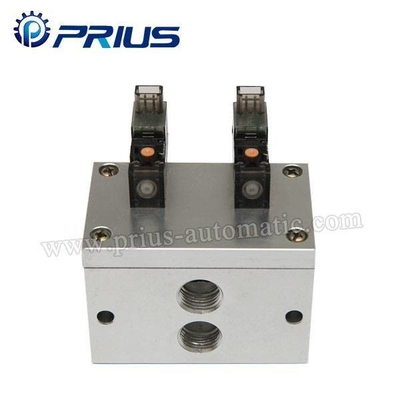

Patent Products Diaphragm Valve MP-08 use for Medical Apparatus and Instruments
Specifiction
| Model | MP-08 |
| Medium | air/oxygen/rare gases |
| Pressure IN-port1.2-OUT1.2 | Min:0.001Mpa |
| Service pressure range | 0~0.35Mpa |
| Max operating pressure | 0.4Mpa |
| Effective cross-sectional arer | 16mm2 |
| Cv value | 0.89 |
| Ambient temperature | (-5~60c°) |
| Operating fluid temperature | (-5~50c°) |
| Allowable inside lerkage | pressure=0.2Mpa ≤0.1/min |
| Allowable outside lerkage | pressure=0.2Mpa ≤0.1/min |
| Mounting posture | According to our design |
| Response time | ON=≤0.1MS OFF=≥0.1MS |
| Noise level | |
| Life cycles | ≥10 million times |
| Allowable voltage fluctuation | DC12V DC24V |
| Range of allowable voltage | ±15% |
| Power consumption | 1W |
| Class of Insulation | F class |
| Protective struchure | IP65/IEC/DIN40050 |
| Piping thread | G1/4″ |
| Lead wire length | produce as requested |
| Dimensions Mounting | 71.3mm*42mm*64.3mm(h) |
| Material | aluminium alloy brass |
| Net Weight | 0.4kg/pcs |
