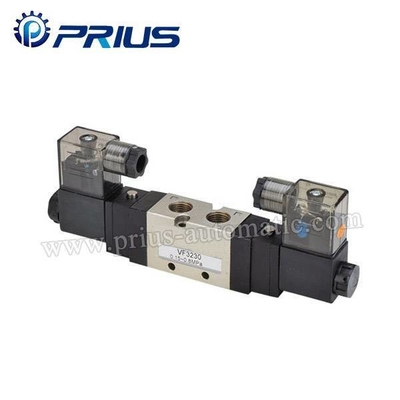

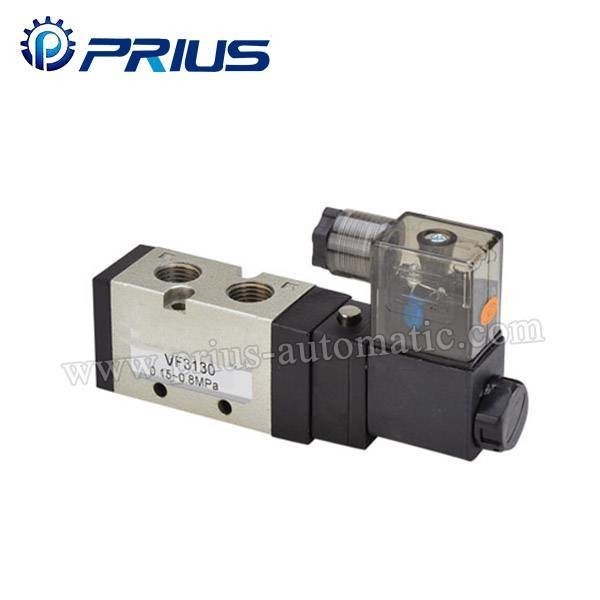

VF/VZ SERIES
|
Product Details:
|
Detailed Product Description
Ordering Code
Specification
| Model | VF3130 VF3230 | VF33(4/5)30 | VF5120 VF5220 | VF53(4/5)50 | VZ5120 VZ5220 | VZ53(4/5)50 | |
| Position and Way NO. | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | |
| Effective Sectional Area | 16mm2 (CV=0.89) | 12mm2 (CV=0.67) | 25mm2 (CV=1.40) | 18mm2 (CV=1.00) | 12mm2 (CV=0.67) | 9mm2 (CV=0.50) | |
| Working Medium | 40 Micron Filtered Air | ||||||
| Motion Pattern | Inner Guide Type | ||||||
| Working-pressure | 0.15~0.8MPa | ||||||
| Max. Pressure Resistance | 1.2MPa | ||||||
| Operating Temperature | 5~50℃ | ||||||
| Voltage Range | ±10% | ||||||
| Power Consumption | AC: 4.5VA DC: 3W | ||||||
| Insulation & Protection Class | F Class. IP65 | ||||||
| Wiring Form | Lead Wire or Connector type | ||||||
| Highest Action Frequency | 5 Cycle / Sec | ||||||
| Shortest Excitation Time | 0.05 Second | ||||||
| Model | VF3130 VF3230 | VF33(4/5)30 | VF5120 VF5220 | VF53(4/5)50 | VZ5120 VZ5220 | VZ53(4/5)50 | |
| Position and Way NO. | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | |
| Effective Sectional Area | 16mm2 (CV=0.89) | 12mm2 (CV=0.67) | 25mm2 (CV=1.40) | 18mm2 (CV=1.00) | 12mm2 (CV=0.67) | 9mm2 (CV=0.50) | |
| Working Medium | 40 Micron Filtered Air | ||||||
| Motion Pattern | Inner Guide Type | ||||||
| Working-pressure | 0.15~0.8MPa | ||||||
| Max. Pressure Resistance | 1.2MPa | ||||||
| Operating Temperature | 5~50℃ | ||||||
| Voltage Range | ±10% | ||||||
| Power Consumption | AC: 4.5VA DC: 3W | ||||||
| Insulation & Protection Class | F Class. IP65 | ||||||
| Wiring Form | Lead Wire or Connector type | ||||||
| Highest Action Frequency | 5 Cycle / Sec | ||||||
| Shortest Excitation Time | 0.05 Second | ||||||
Overall Dimension
