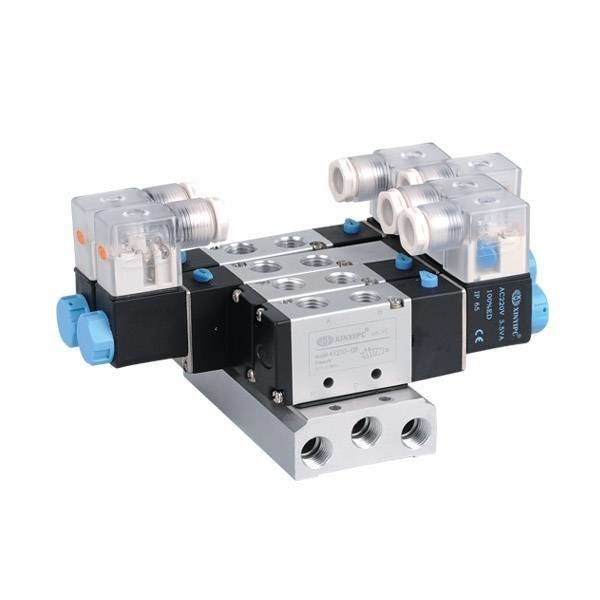

solenoid valve accessories
|
Product Details:
|
Detailed Product Description
| Base Base Ordering Code: | 100-400 Series | Accessory Ordering Code: | Not Provided |
|---|---|---|---|
| Overall Dimension: | Array,Array,Array,Array |
100-400 Series Base
Base Ordering Code Accessary Ordering Code
Overall Dimension
Dimension Sheet
| Inside Dia./Symbol | A | B | C | E | F | G | H | K | L | M | Q | R | S | W | X | Y | ||||||||||||||||||
| 100M-□F | 58 | 43 | 20 | 4.2 | 18.3 | 19 | 5 | 140 | (n-1)x19+38 | 155 | G1/4 | 40 | 30 | 78.5 | 25 | 27 | ||||||||||||||||||
| 200M-□F | 59 | 50 | 21 | 4.3 | 22.2 | 23 | 6 | 170 | (n-1)x23+46 | 189 | G1/4 | 43 | 32 | 92.5 | 26 | 35 | ||||||||||||||||||
| 300M-□F | 75 | 64 | 26 | 4.5 | 27.3 | 27 | 6 | 189 | (n-1)x28+54 | 208 | G3/8 | 53 | 48 | 99 | 30 | 40 | ||||||||||||||||||
| 400M-□F | 98 | 94 | 32 | 5.5 | 34.3 | 31.5 | 7 | 222 | (n-1)x35+63 | 243 | G1/2 | 68 | 67 | 112 | 38 | 50 | ||||||||||||||||||
