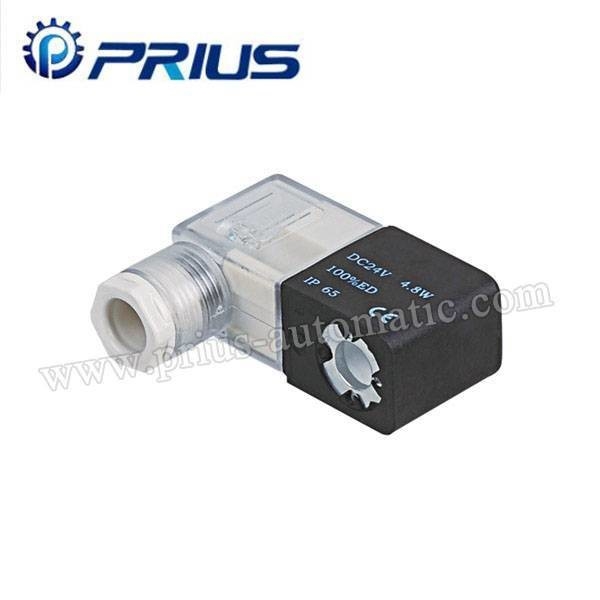

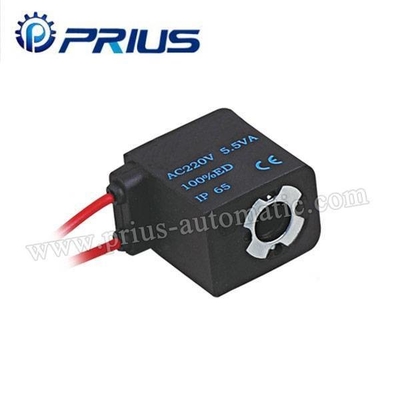

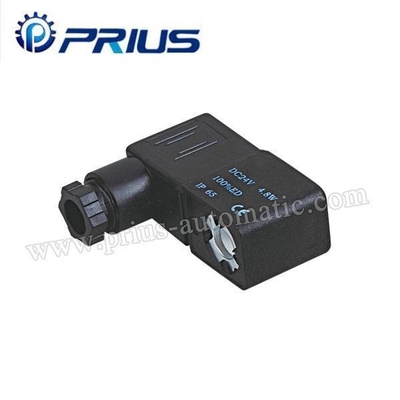

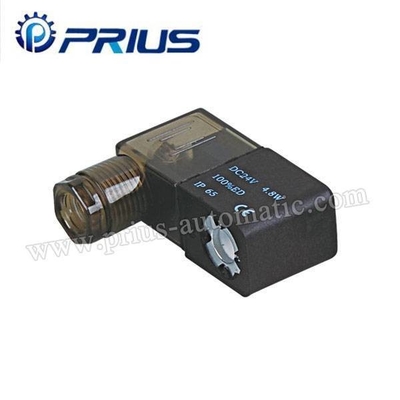

200C 24 Volt Solenoid Coil 200 / 300 / 400 Seri...
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Aluminium Alloy Brass | Working Medium: | Air/oxygen/rare Gases |
|---|---|---|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
| Temperature Range: | -5~60℃ | Port Size: | G1/4″ |
| Net Weight: | 0.4kg/pcs | Voltage: | DC12V,DC24V |
| Class Of Insulation: | F Class | Cv: | 0.89 |
| Coils: | 200C Coils DC / AC Power For 200 / 300 / 400 Series Solenoid Valve | Junction Box: | Wire Lead |
| Quick Detail: | Electromagnetic Induction Coil For Pneumatic Solenoid Valve Application | Min.Order Quantity: | 10PCS |
| Port: | NingBo Or ShangHai | FOB Price: | Negotiation |
Detailed Product Description
| Material: | Aluminium Alloy Brass | Working Medium: | Air/oxygen/rare Gases |
|---|---|---|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
| Temperature Range: | -5~60℃ | Port Size: | G1/4″ |
| Net Weight: | 0.4kg/pcs | Voltage: | DC12V,DC24V |
| Class Of Insulation: | F Class | Cv: | 0.89 |
200C Coils DC / AC power for 200 / 300 / 400 series Solenoid Valve Junction Box wire lead
Quick Detail:
* electromagnetic induction coil for pneumatic solenoid valve application
* working voltage DC12V,DC24V,AC110V,AC220V
* power consumption AC:4VA~30VA,DC:3W~48W
* thermoplastic type,Thermosetting type,Non Encapsulation type
* electricity connecting type wire flying lead type or socket type
* electricity connecting standard DIN43650A DIN43650B
* insulation F class,H class
* various model for different application
* stable and long service cycle
* CE certification approved
Specifiction
| Model | 100C | 200C | |
| Power | DC:2.8W AC:2.8VA | AC: 5.5VA DC: 4.8W | |
| Operation | 100% ED | ||
| Working Voltage | AC:24V, 110V, 220V, 380V | DC:12V, 24V | |
| Ambient Temperature | -30℃～70℃ | ||
| Protect Class | IP65 | ||
| Insulation Class | F Class | ||
| Wiring Form | Lead Wire Type, Connector Type | ||
