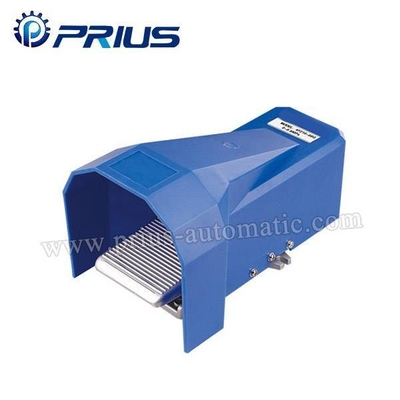

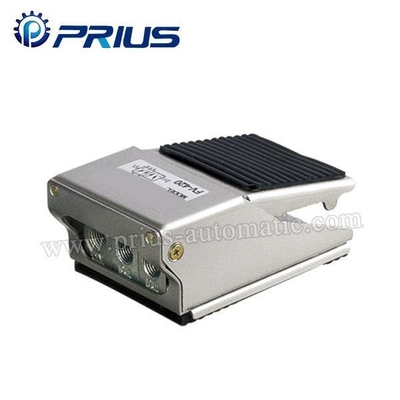

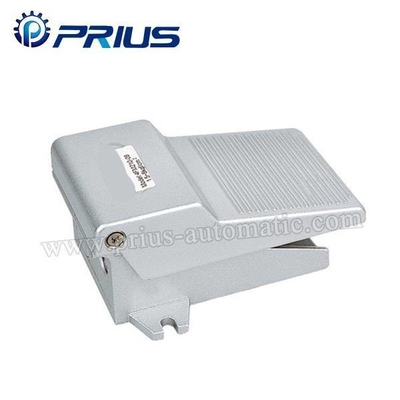

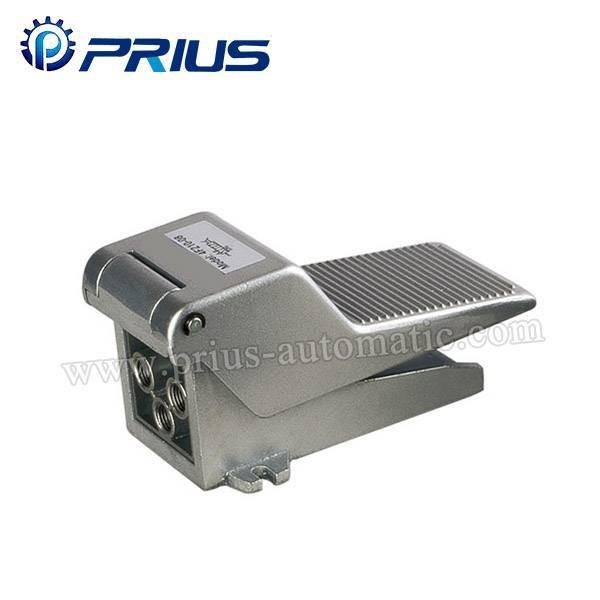

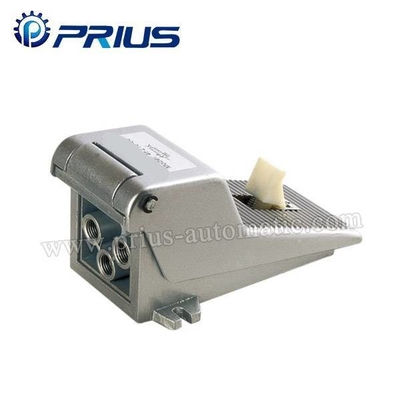

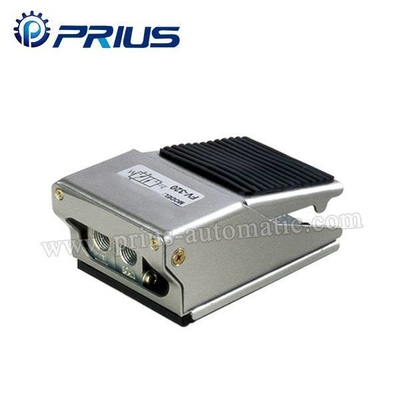

4F/4FM/FV FOOT VALVE
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ordering Code: | 4F210-08 4FM210-08 4F210-08L 4F210-08G 4F210-08LG 3FM210-08 FV420 FV320 | Working Medium: | 40 Micron Filtered Air |
|---|---|---|---|
| Position And Way: | 5/2 Way 3/2 Way 4/2 Way 3/2 Way,Direct Driver Type | Port Size: | G1/4′,G1/4′,G1/8′ |
| Working-pressure Range: | 0~0.8MPa | Operating Temperature Range: | 0~60℃ |
| Overall Dimension: | Not Provided | FOB Price: | Negotiation |
| Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |

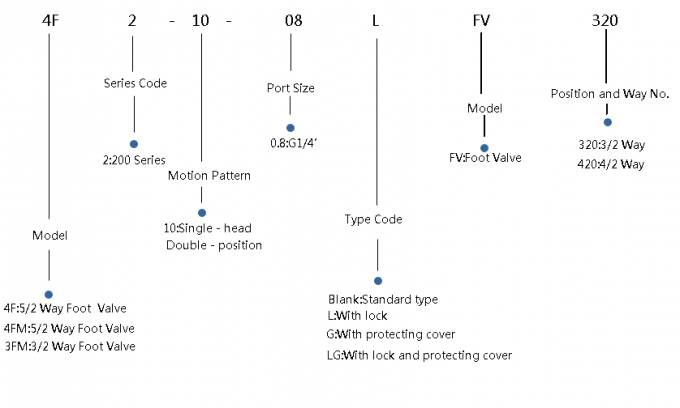

Ordering Code
Specification
| Model | 4F210-08 4FM210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | 3FM210-08 | FV420 | FV320 |
| Working Medium | 40 Micron Filtered Air | ||||||
| Position and Way NO. | 5/2 Way | 3/2 Way | 4/2 Way | 3/2 Way | |||
| Motion Pattern | Direct Driver Type | ||||||
| Port Size | Air Inler=Air Outlet=Exhaust=G1/4′ | Air Inler=Air Outlet=G1/4′ Exhaust=G1/8′ | |||||
| Working-pressure Range | 0~0.8MPa | ||||||
| Operating Temperature Range | 0~60℃ | ||||||
Overall Dimension
