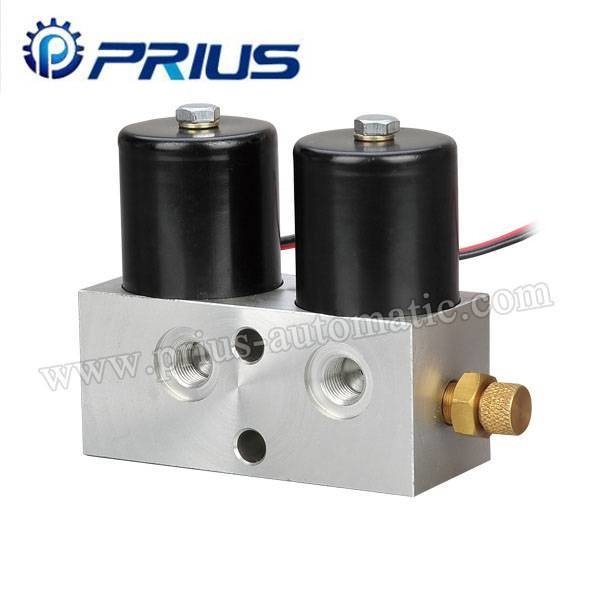

High Pressure Air Flow Control Valve DC12V / DC...

High Pressure Air Flow Control Valve DC12V / DC...
High Pressure Air Flow Control Valve DC12V / DC...

Large Image :  High Pressure Air Flow Control Valve DC12V / DC... Get Best Price

Product Details:
Payment & Shipping Terms:
Payment Terms: T/T,L/C,PAYPAL
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Name: Precision Flow Control Valve Working Medium: Air/oil
Max Pressure: 0.4Mpa Pressure Range: 0~0.35Mpa
Temperature Range: 0~70℃ Port Size: G1/4″
Net Weight: 0.5kg/pcs Voltage: DC12V,DC24V,AC110V,AV220V
Life: Over 10 Million Times Design Pressure: 100 KGF/CM2
Valve Body: Special Mirror Processing And Hard Treatment FOB Price: Negotiation
Min.Order Quantity: 10PCS Port: NingBo Or ShangHai

Product Detail

Product Tags

Detailed Product Description
Name: Precision Flow Control Valve Working Medium: Air/oil
Max Pressure: 0.4Mpa Pressure Range: 0~0.35Mpa
Temperature Range: 0~70℃ Port Size: G1/4″
Net Weight: 0.5kg/pcs Voltage: DC12V,DC24V,AC110V,AV220V

High Pressure Air Flow Control Valve DC12V / DC24V Secondary Shunt Double Coils

Specifiction

1. Life over 10 million times

2. The design pressure of 100 KGF/CM2

3. The valve body by the special mirror processing and hard treatment

Model XSS-06
Motion Pattern Direct Drive
Working Medium Air, Oil
Working-pressure Range 1-50Kgf/c㎡
Ensured Pressure Resistance 60Kgf/c㎡
Operating Temp. 0~ 70℃
Operating Speed 5 times/s
Port Size G1/8″
Weight 0.5kg
Package Volume 40X80X106mm

NO. Designation Material Amount 　 NO. Designation Material Amount
1 M5 Screw with washer A3 2 7 Adjustable Needle Nut HPB59 1
2 Coil 　 2 8 Valve Body 6061 1
3 Barrel 304 2 9 O-ring NBR 1
4 O-ring NBR 2 10 Brass HPB59 1
5 O-ring NBR 1 11 Adjustable cone PTFE 1
6 Adjustable Needle HPB59 1 12 Spring Piano wire 1

DC

Overall Dimension

DC2
