ST series
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Shuttle Valve | Working Medium: | Air |
|---|---|---|---|
| Pressure Range: | 0~1.0Mpa | Temperature Range: | 0~60℃ |
| Port Size: | G1/8″~G1″ | Net Weight: | 0.05kg/pcs |
| Body Material: | Aluminum Alloy | Quick Detail: | ST Series Shuttle Valve |
| Port Sizes Available: | G1/8″,G1/4″,G3/8″,G1/2″,G3/4″,G1″ | Min. Order Quantity: | 10PCS |
| Port: | NingBo Or ShangHai |
ST series
Detailed Product Description
| Name: | Shuttle Valve | Working Medium: | Air |
|---|---|---|---|
| Pressure Range: | 0~1.0Mpa | Temperature Range: | 0~60℃ |
| Port Size: | G1/8″~G1″ | Net Weight: | 0.05kg/pcs |

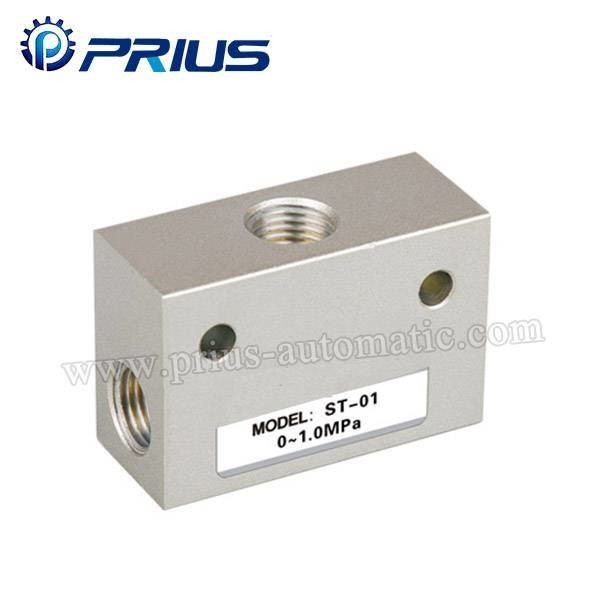

ST Series Shuttle Air Flow Control Valve Aluminum Body With Port Size G 1 / 8 ” – G 1 “

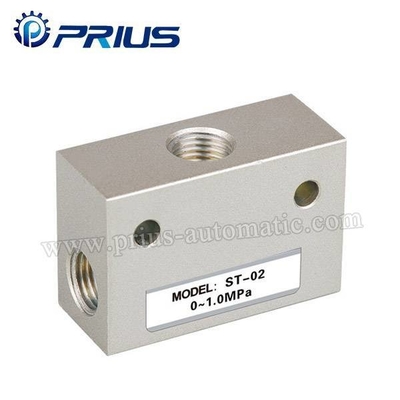

ST Series Shuttle Valve port size G1/8~G1 Aluminum material valve body e.g ST-02
Quick Detail:
* ST Series Shuttle Valve
* Body Material Aluminum Alloy
* Port Size G1/8”,G1/4”,G3/8,G1/2”,G3/4”,G1”
* Compact design,small volume
* Easy operation,sensitive of Respond
* Directly pipe joint mounting,easy and convenient
* Stable design,long serive life
Applications:
ST Series Shuttle valve function like two check valve combine together,it is widely use in the Logic circuit or program circuit,the air direction can be determined by selectable by pressure,when pressure differential Positive one port open and non-return,another port shut,when pressure differential negative,the action function will be reversed.
Specifications:
ST Series Shuttle valve
Body material aluminum alloy
Port Size G1/8”~G1”
Surface treatment hardcoat anodiz
| Model | ST-01 | ST-02 | ST-03 | ST-04 | ST-06 | ST-08 |
| Working Medium | Air | |||||
| Effective Sectional Area | 7.5mm2 | 21mm2 | 40mm2 | 60mm2 | 110mm2 | 190mm2 |
| Port Size | G1/8″ | G1/4″ | G3/8″ | G1/2″ | G3/4″ | G1″ |
| Working-pressure Range | 0 ~ 1.0MPa | |||||
| Operating Temperature | 0 ~ 60℃ | |||||
| Model | A | B | C | D | E | F | G |
| ST-01 | 40 | 24 | 16 | 4.5 | 25 | 20.5 | G1/8″ |
| ST-02 | 50 | 35 | 22 | 5.5 | 35 | 25 | G1/4″ |
| ST-03 | 75 | 48 | 30 | 7 | 50 | 42 | G3/8″ |
| ST-04 | 75 | 48 | 30 | 7 | 50 | 42 | G1/2″ |
| ST-06 | 110 | 72 | 40 | 7 | 70 | 58 | G3/4″ |
| ST-08 | 110 | 72 | 40 | 7 | 70 | 58 | G1″ |
