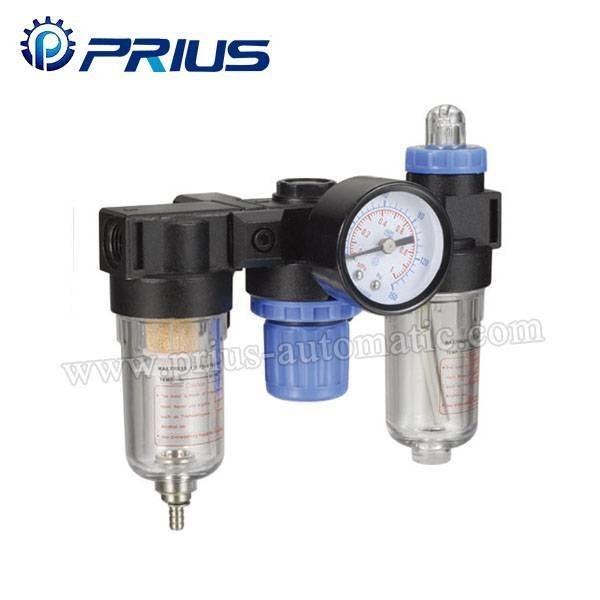

AC/BC F.R.L.combination
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ordering Code Specification Model: | Array,Array,Array,Array,Array | Min.Order Quantity: | 10PCS |
|---|---|---|---|
| Port: | NingBo Or ShangHai |

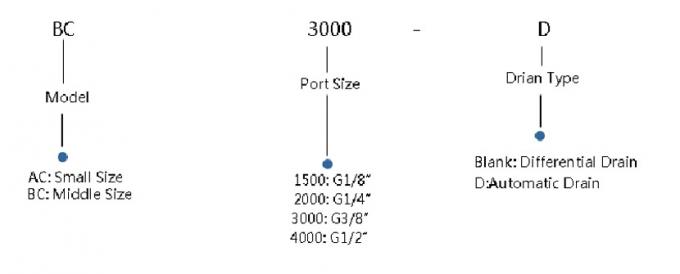

Ordering Code
Specification
| Model | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |
| Operating Fluid | Air | |||||
| Port Size | G1/8″ | G1/4″ | G1/4″ | G3/8″ | G1/2″ | |
| Filtering Element Roughness | 40μ | |||||
| Range of Adjustable Pressure | 0.05~0.85MPa | |||||
| Max. Adjustable Pressure | 0.95MPa | |||||
| Ensured Pressure Resistance | 1.5MPa | |||||
| Poerating Temp.Range | 5~60℃ | |||||
| Capacity of Filter Cup | 15 cc | 60 cc | ||||
| Capacity of Oil Feed Cup | 25 cc | 90 cc | ||||
| Suggested Lube | ISO VG 32 or Same Grade Oil | |||||
| Weight | 0.7KG | 0.9KG | ||||
| Material | Body | Aluminum Die-casting Forming | ||||
| Container Cup | PE | |||||
| Protective Cup Cover | - | Iron | ||||
| Composing Elements | Filter | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
Overall Dimension
