Product Details:
Payment & Shipping Terms:
|
Short Description: | Detailed Product Description Material: PTFE Name: PTFE Teflon Hose Colour: ORANGE/BLUE/Red/BLACK/WHITE/NATURE Size: Up To 12mm Code: PTFE 8*6 MOQ: 200M High Temperature PTFE Teflon Pneumatic Air Tube , Nature Colour Air Hose Teflon PTFE Material T | FOB Price: | Negotiation |
---|---|---|---|
Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Material: | PTFE | Name: | PTFE Teflon Hose |
---|---|---|---|
Colour: | ORANGE/BLUE/Red/BLACK/WHITE/NATURE | Size: | Up To 12mm |
Code: | PTFE 8*6 | MOQ: | 200M |

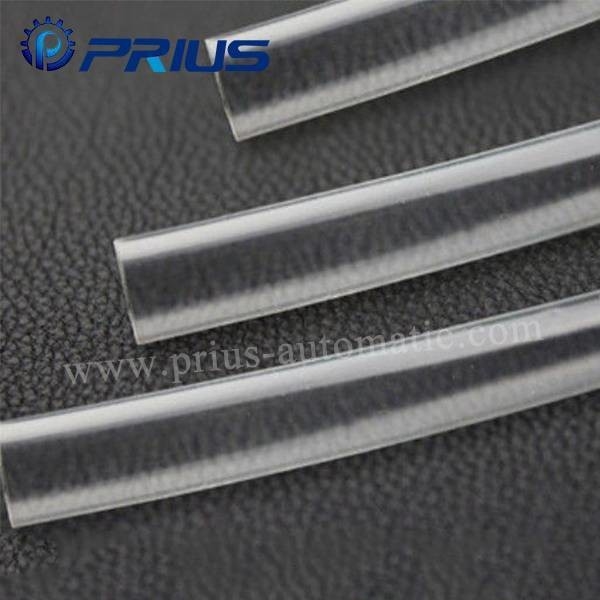

High Temperature PTFE Teflon Pneumatic Air Tube , Nature Colour Air Hose
Teflon PTFE material tube O.D size 4mm,6mm,8mm,10mm,12mm,16mm working temperature -40~100℃,working pressure 20Bar e.g PTFE(6)8×6-100M-T
Quick Detail:
* Teflon PTFE material tube
* Working temperature:-200~260℃
* Outer Dia. Metric 4mm, 6mm, 8mm,10mm,12mm,16mm
* Inch size Out Dia.1/4”,5/16”,3/8”,1/2”
* conform to ROHS environment protection requirement
* good flexibility for piping working
* pressure-resistance,wear-resistance
* resistance toSolvents,alkalizes.oils,greases,potroleum,fungus,molds
* resistance to dilute mineral and organic acids.
* heat and light stabilized
* wide applicable range of tempeature
* various tube colours for option make it easier to distinguish pipes one another
* non-toxic,tastless
Applications:
PTFE SerIes Teflon tube used widely in air conditioning,air lines,Chemicals, compressed air, coolant,dispensing equipment, Fuel&Oil, Grease&Lubrication lines,Hydraulics, Instrumentation, laboratory,paint supply,Refrigeration etc
Specifications:
1, Material: Teflon
2, Working Fluids:Air,water,oil
3, Working Pressure:-0.2bar~12bar
4, Working Temperature:-200~260℃
ORDERING CODE | |||
PTFE | 8×5 | 100M | BU |
Type | O.Dx I.D Metric Size And Inch Szie | Meters Per Roll | Colours |
PTFE Tube | 3×2 | 200M/ROLL | BU:BLUE |
4×2.5 | |||
5×3 | |||
6×4 | B:BLACK | ||
8×5 | 100M/ROLL | ||
8×5.5 | |||
8×6 | R:RED | ||
10×6.5 | |||
10×7 | |||
10×8 | Y:YELLOW | ||
12×8 | |||
14×10 | |||
16×12 | T:TRANSPARENT | ||
1/8″ | 200M/ROLL | ||
5/32″ | G:GREEN | ||
1/4″ | |||
5/16″ | 100M/ROLL | TBU:BLUE TRANSPARENT | |
3/8″ | |||
1/2″ |
MODEL NO | O.D | I.D | Tolerance(mm) | THICKNESS(mm) | BURSTING PRESSURE(BAR) | WORKING PRESSURE(BAR) | BENDING RADIUS(mm) | KGS/PC | PCS/CARTPM | VOLUME |
PU3X2/200M | 3 | 2 | 0.1 | 0.5 | 30 | 10 | 8 | 1.4 | 10 | 0.09 |
PU4×2.5/200M | 4 | 2.5 | 0.1 | 0.75 | 30 | 10 | 10 | 1.9 | 10 | 0.09 |
PU5X3/200M | 5 | 3 | 0.1 | 1 | 30 | 10 | 8 | 6 | 0.09 | |
PU6×4/200M | 6 | 4 | 0.1 | 1 | 30 | 10 | 15 | 3.9 | 6 | 0.09 |
PU8×5/100M | 8 | 5 | 0.1 | 1.5 | 30 | 10 | 20 | 3.7 | 6 | 0.09 |
PU8×5.5/100M | 8 | 5.5 | 0.1 | 1.25 | 24 | 8 | 20 | 3.3 | 6 | 0.09 |
PU8×6/100M* | 8 | 6 | 0.1 | 1 | 18 | 6 | 30 | 2.8 | 6 | 0.09 |
PU10×6.5/100M | 10 | 6.5 | 0.12 | 1.75 | 30 | 10 | 30 | 5.6 | 4 | 0.09 |
PU10×7/100M* | 10 | 7 | 0.12 | 1.5 | 24 | 8 | 32 | 5.1 | 4 | 0.09 |
PU10×8/100M* | 10 | 8 | 0.12 | 1 | 18 | 6 | 35 | 3.6 | 4 | 0.09 |
PU12×8/100M | 12 | 8 | 0.15 | 2 | 30 | 10 | 35 | 7.8 | 4 | 0.12 |
PU12×9/100M* | 12 | 9 | 0.15 | 1.5 | 18 | 6 | 40 | 6.2 | 4 | 0.12 |
PU16×12/100M | 16 | 12 | 0.15 | 2 | 24 | 8 | 40 | 11 | 2 | 0.12 |
PU1/8-200M | 3.2 | 2 | 0.1 | 0.6 | 30 | 10 | 8 | 1.58 | 10 | 0.09 |
PU5/32-200M | 4 | 2.5 | 0.1 | 0.75 | 30 | 10 | 10 | 1.9 | 10 | 0.09 |
PU1/4-200M | 6.35 | 4.57 | 0.1 | 0.9 | 30 | 10 | 15 | 3.9 | 6 | 0.09 |
PU5/16-100M | 8 | 5 | 0.15 | 1.5 | 30 | 10 | 20 | 3.7 | 6 | 0.09 |
PU3/8-100M | 9.6 | 6.5 | 0.12 | 1.5 | 21 | 7 | 30 | 4.8 | 4 | 0.09 |
PU1/2-100M | 12.6 | 9.6 | 0.15 | 1.5 | 21 | 7 | 40 | 6.6 | 4 | 0.12 |
Competitive Advantage:
Our product features: | Our Services Guarantee: |
1) Competitive price with good quality | 1) Prompt respond (Reply with 24 hours) |
2) Much ODM Experience | 2) Free Samples(amount <$20) with freight collect |
3) Fashion and Hard Packaging | 3) Professional Sales |
4) New Factory with New Machine | 4) Photos/videos are available during production. |
5) Prompt Delivery Date | 5) Loading inspection, and send loading photos before shipment. |
