High Pressure Gas Pneumatic Air Tubing PVC Synt...
|
Product Details:
|
Detailed Product Description
| Material: | Thermoplastic Polyurethane | Name: | Plastic Pvc Tubing |
|---|---|---|---|
| Colour: | ORANGE,BLUE,Red,BLACK,WHITE,NATURE | Size: | Up To 16mm |
| Code: | PU8*6 | Moq: | 200M |
| Short_description: | PVC Synthetic Fiber Reinforced Hose 1Mpa – 2Mpa For High Pressure Gas PVC Fiber Reinforced Hose For High Pressure Gas,oil,water Working Pressure 1~2Mpa,I.D Size 3/16”~2” E.g PVCA-1/4-100M PVC Air Hose,PVC Pipe,PVC Reinforced Tube Quick Detail: * PVCA Fiber | Fob_price: | Negotiation |
| Min_order_quantity: | 10PCS | Supply_ability: | 10000 Piece/Pieces Per Month |
| Port: | NingBo Or ShangHai | Payment_terms: | T/T,L/C,PAYPAL |
Detailed Product Description
| Material: | Thermoplastic Polyurethane | Name: | Plastic Pvc Tubing |
|---|---|---|---|
| Colour: | ORANGE/BLUE/Red/BLACK/WHITE/NATURE | Size: | Up To 16mm |
| Code: | PU8*6 | MOQ: | 200M |

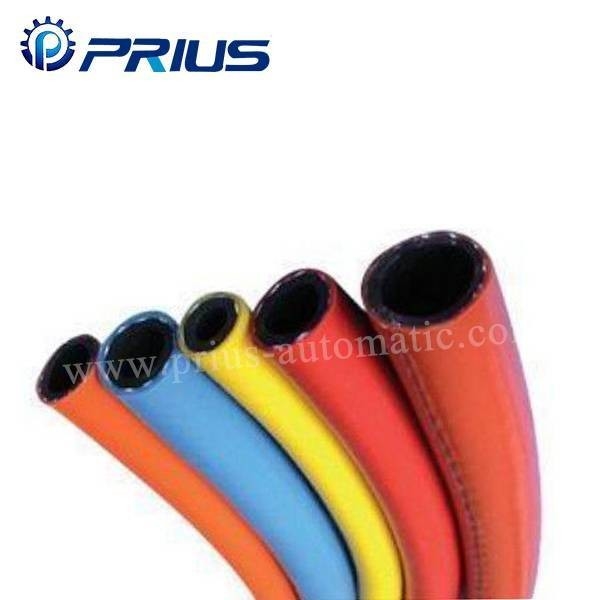

PVC Synthetic Fiber Reinforced Hose 1Mpa – 2Mpa For High Pressure Gas
PVC Fiber reinforced hose for high pressure gas,oil,water working pressure 1~2Mpa,I.D size 3/16”~2” e.g PVCA-1/4-100M
PVC air hose,PVC Pipe,PVC reinforced tube
Quick Detail:
* PVCA fiber reinforced tube for high pressure air,water,oil
* inner Diamter inch size 3/16”~2”
* tube material PVC
* outside cover material PVC
* reinforcement material High tensile synthetic fibre spiraled
* flexible and soft,easy for pipe work
* conform to ROHS environment protection requirement
* pressure-resistance,weather-resistance
* oil resistant, acid and alkali resistant,corrosion-resistance
* light in weight,cost efffectly
* wide applicable range of tempeature
* non-toxic,tastless
Applications:
PVCA Hose Mainly used for conveying of high pressure water, air, oil and inert gas in industry, agriculture, construction, engineering and machinery
| Inside Diameter | Outside Diameter (mm) | Working Pressure (Mpa) | Burst Pressure (Mpa) | Length Max.(m) | Weight(kg/m) | |
| inch | mm | |||||
| 3/16” | 5 | 11 | 2 | 6.0 ～ 8.0 | 100 | 0.098 |
| 1/4” | 6 | 12 | 2 | 6.0 ～ 8.0 | 100 | 0.111 |
| 5/16” | 8 | 14 | 2 | 6.0 ～ 8.0 | 100 | 0.135 |
| 8.5 | 14.5 | 2 | 6.0 ～ 8.0 | 100 | 0.141 | |
| 3/8” | 10 | 16 | 2 | 6.0 ～ 8.0 | 100 | 0.16 |
| 1/2” | 13 | 20 | 2 | 6 | 100 | 0.236 |
| 5/8” | 16 | 25 | 1.5 | 5 | 100 | 0.377 |
| 3/4” | 19 | 28.5 | 1.5 | 4.5 | 100 | 0.461 |
| 1” | 25 | 34.5 | 1.5 | 4.5 | 50 | 0.577 |
| 1-1/4″ | 32 | 44 | 1 | 3 | 50 | 0.931 |
| 1-1/2″ | 38 | 50 | 1 | 3 | 50 | 1.078 |
| 2″ | 50 | 64 | 1 | 3 | 50 | 1.629 |
| PVCA | 1/2 | 100M |
| Type | Inner Diameter Inch Size | Meters/Roll |
| PVCA:PVC Fiber Reinforced hose For high pressure air/water/oil | 3/16” | 100 |
| 1/4” | 100 | |
| 5/16” | 100 | |
| 100 | ||
| 3/8” | 100 | |
| 1/2” | 100 | |
| 5/8” | 100 | |
| 3/4” | 100 | |
| 1” | 50 | |
| 1-1/4″ | 50 | |
| 1-1/2″ | 50 | |
| 2″ | 50 |
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price with good quality | 1) Prompt respond (Reply with 24 hours) |
| 2) Much ODM Experience | 2) Free Samples(amount <$20) with freight collect |
| 3) Fashion and Hard Packaging | 3) Professional Sales |
| 4) New Factory with New Machine | 4) Photos/videos are available during production. |
| 5) Prompt Delivery Date | 5) Loading inspection, and send loading photos before shipment. |
