HV/K/4HVseries HAND SWITCH VALVE
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Manual Directional Control Valve | Working Medium: | Air |
|---|---|---|---|
| Pressure Range: | 0~0.8Mpa | Temperature Range: | 0~60℃ |
| Colour: | White | MOQ: | 10pcs |
| Series: | 4HV | Seal: | NBR Or TC Seal With Nut |
| Position: | Three | Way: | Four |
| Port Size: | G1/4, G3/8, G1/2 | Switching Angle: | 90º |
| Quick Detail: | 4HV Series Hand Switching Valve | Main Body Mounting: | Panel |
| FOB Price: | Negotiation | Min. Order Quantity: | 10PCS |
| Port: | NingBo Or ShangHai |
Detailed Product Description
| Name: | Manual Directional Control Valve | Working Medium: | Air |
|---|---|---|---|
| Pressure Range: | 0~0.8Mpa | Temperature Range: | 0~60℃ |
| Colour: | White | MOQ: | 10pcs |

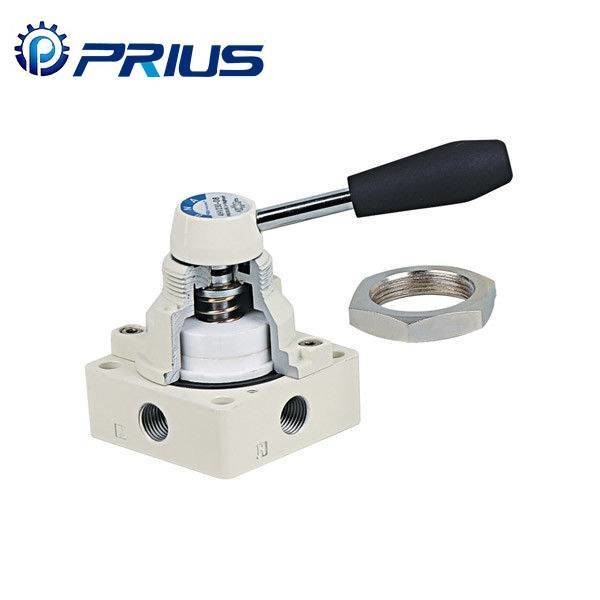

4HV Series Hand Switching Valve White Body NBR seal or TC seal with Nut
4HV Series Three position four way hand switching valve port size G1/4,G3/8,G1/2 e.g 4HV400-15 with 90º switching angle
Quick Detail:
* 4HV Series hand switching valve
* Three position Four Way
* Port Size G1/4,G3/8,G1/2
* Main body mounting and Panel Mounting for option
* Switching angle 90º,sensitive repond acting
* Smooth switching,Long Service Life
Applications:
4HV series hand switching valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system
Specifiction
| Model | 4HV-200 | 4HV-300 | 4HV-400 | ||||||
| Port Size Code | 6A | 8A | 8A | 10A | 15A | 8A | 10A | 15A | 20A |
| Operating Fluid | Air | ||||||||
| Working-pressure Range | 0~10Kgf/cm | ||||||||
| Environment Temperature | 5~60℃ | ||||||||
| Way NO. | 4 | ||||||||
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT1/4 | PT3/8 | PT1/2 | PT3/4 |
