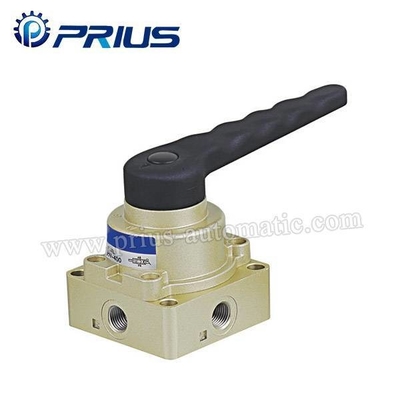

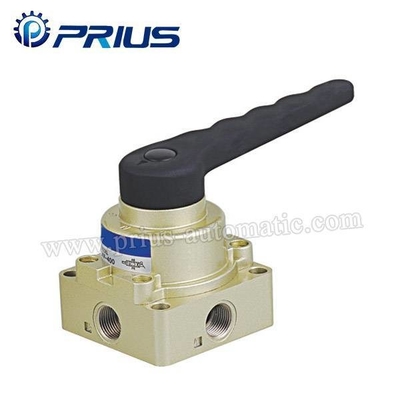

HV/K/4HV Hand Switch Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Short Description: | 40 Micron Filtered Air,Array,Array,0~0.8MPa,0~60℃,Hand-switching Valve With Soft Rubber Seals And Hard Pottery Seals | FOB Price: | Negotiation |
|---|---|---|---|
| Min. Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Ordering Code
Specification
| Model | HV400-02 | HV400-03 | HV400-04 | K34R8-L6 | K34R8-L8 | |||||||||
| Working Medium | 40 Micron Filtered Air | |||||||||||||
| Effective Sectional Area | 30mm2(CV=1.68) | 18mm2(CV=1.00) | ||||||||||||
| Port Size | G1/4″ | G3/8″ | G1/2″ | G1/8″ | G1/4″ | |||||||||
| Working-pressure Range | 0~0.8MPa | |||||||||||||
| Operating Temperature | 0~60℃ | |||||||||||||
*Company can offer Hand-switching Valve with soft rubber seals and hard pottery seals as the seal structure form.
Overall Dimension
4HV
Ordering Code
Specification
| Model | 4HV-200 | 4HV-300 | 4HV-400 | ||||||
| Port Size Code | 6A | 8A | 8A | 10A | 15A | 8A | 10A | 15A | 20A |
| Operating Fluid | Air | ||||||||
| Working-pressure Range | 0~10Kgf/cm | ||||||||
| Environment Temperature | 5~60℃ | ||||||||
| Way NO. | 4 | ||||||||
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT1/4 | PT3/8 | PT1/2 | PT3/4 |
Overall Dimension
