MHZ2 SERIES pneumatic gripper
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Short Description: | MHZ2 Ordering Code Specification | Bore (mm): | 10,16,20,25,32,40 |
|---|---|---|---|
| Working Medium: | Air | Motion Pattern: | Double Action /Single Action (Normal Open,Normal Close) |
| Max.Operating Pressure: | Array,Array | Ambient & Medium Temp.: | -10~+60℃ |
| Highest Operating Frequency: | 180,60 | Precision: | 0.01,0.02 |
| With Magnet: | With (Standard) | Lubricate: | No Required |
| Port Size: | M3×0.5,M3×0.8 | FOB Price: | Negotiation |
| Min.Order Quantity: | 10 | Port: | NingBo Or ShangHai |
MHZ2
Ordering Code
Specification
| Bore (mm) | 10 | 16 | 20 | 25 | 32 | 40 | |
| Working Medium | Air | ||||||
| Motion Pattern | Double Action /Single Action (Normal Open,Normal Close) | ||||||
| Max.Operating Pressure | 0.7MPa | ||||||
| Max.Operating Pressure | Double Action | 0.1MPa | 0.2MPa | 0.1MPa | |||
| Single Action | 0.3MPa | 0.35MPa | 0.25MPa | ||||
| Ambient & Medium Temp. | -10~+60℃ | ||||||
| Highest Operating Frequency | 180c.p.m | 60c.p.m | |||||
| Precision | ±0.01mm | ±0.02mm | |||||
| With Magnet | With (Standard) | ||||||
| Lubricate | No required | ||||||
| Port Size | M3×0.5 | M3×0.8 | |||||
Standard Type Pneumatic Gripper
| Motion Pattern | Model | N | mm | ||
| Double Action | MHZ2-10D -16D -20D -25D -32D -40D | 11 34 42 65 158 254 | 17 45 66 104 193 318 | 4 6 10 14 22 30 | |
| Single Action | Normal Open | MHZ2-10S -16S -20S -25S -32S -40S | 7.1 27 33 45 131 217 | - | 4 6 10 14 22 30 |
| Normal Close | MHZ2-10C -16C -20C -25C -32C -40C | - | 13 38 57 83 161 267 | 4 6 10 14 22 30 | |
Long Stroke Pneumatic Gripper
| Motion Pattern | Model | N | mm | ||
| Double Action | MHLZ2-10D -16D -20D -25D | 11 34 42 65 | 17 45 66 104 | 8 12 18 22 | |
| Single Action | Normal Open | MHLZ2-10S -16S -20S -25S | 7.1 27 33 50 | - | 8 12 18 22 |
| Normal Close | MHLZ2-10C -16C -20C -25C | - | 13 38 57 85 | 8 12 18 22 | |

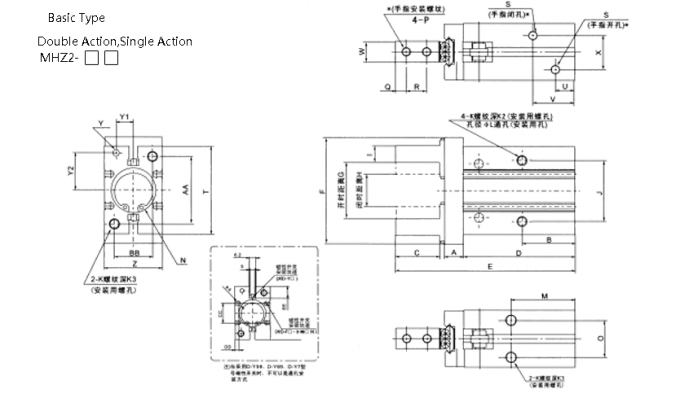

Overall Dimension
| Bore | A | B | C | D | E | F | G | H | I | J | K | K1 | K2 | K3 | ΦL | M | N | O | |||||
| 10 | 6 | 23 | 12 | 37.8 | 57 | 29 | 15.2 | +2.2 0 | 11.2 | 0 -0.7 | 4 | 0 -0.1 | 16 | M3×0.5 | 6 | 5.5 | 6 | 2.6 | 27 | Φ11H9 | +0.043 0 | deep 2 | 11.4 |
| 16 | 7.5 | 24.5 | 15 | 42.5 | 67.3 | 38 | 20.9 | +2.2 0.2 | 14.9 | 0 -0.7 | 5 | 0 -0.1 | 24 | M4×0.7 | 4.5 | 8 | 8 | 3.4 | 30 | Φ17H9 | +0.043 0 | deep 2 | 16 |
| 20 | 9.5 | 29 | 20 | 52.8 | 84.8 | 50 | 26.3 | +2.2 0.2 | 16.3 | 0 -0.7 | 8 | 0 -0.1 | 30 | M5×0.8 | 8 | 10 | 10 | 4.3 | 35 | Φ21H9 | +0.052 0 | deep 3 | 18.6 |
| 25 | 11 | 30 | 25 | 63.6 | 102.7 | 63 | 33.3 | +2.5 0.2 | 19.3 | 0 -0.8 | 10 | 0 -0.1 | 36 | M6×1 | 10 | 12 | 12 | 5.1 | 36.5 | Φ29H9 | +0.052 0 | deep 3.5 | 22 |
| 32 | 12 | 40(49) | 29 | 67(76) | 113(122) | 97 | 48 | +2.5 0 | 26 | 0 -0.5 | 12 | 0 -0.1 | 46 | M6×1 | 10 | 13 | 13 | 5.1 | 48(57) | Φ34H9 | +0.062 0 | deep 4 | 26 |
| 40 | 15 | 49(62) | 36 | 83(96) | 139(152) | 119 | 60 | +2.7 0 | 30 | 0 -0.5 | 14 | 0 -0.1 | 56 | M8×1.25 | 13 | 16 | 17 | 6.6 | 58(71) | Φ42H9 | +0.062 0 | deep 4 | 32 |
| Bore | P | Q | R | S | T | U | V | W | X | Y | Z | Y1 | Y2 | AA | BB | CC | DD | EE | |||
| 10 | M2.5×0.45 | 3 | 5.7 | M3×0.5 | 23 | 9 | 19 | 5 | 0 -0.05 | 11 | Φ2H9 | +0.025 0 | deep 3 | 16.4±0.02 | 5.2±0.02 | 7.6±0.02 | 18 | 12 | - | - | 5.4 |
| 16 | M3×0.5 | 4 | 7 | M5×0.8 | 30.6 | 7.5 | 19 | 8 | 0 -0.05 | 13 | Φ3H9 | +0.025 0 | deep 3 | 23.6±0.02 | 6.5±0.02 | 11±0.02 | 22 | 15 | 11.6 | 2.1 | 5.8 |
| 20 | M4×0.7 | 5 | 9 | M5×0.8 | 42 | 10 | 23 | 10 | 0 -0.05 | 15 | Φ4H9 | +0.003 0 | deep 4 | 27.6±0.02 | 7.5±0.02 | 16.8±0.02 | 32 | 18 | 14 | 2.1 | 9 |
| 25 | M5×0.8 | 6 | 12 | M5×0.8 | 52 | 10.7 | 23.5 | 12 | 0 -0.05 | 20 | Φ4H9 | +0.003 0 | deep 4 | 33.6±0.02 | 10±0.02 | 21.8±0.02 | 40 | 22 | 19 | 3.5 | 11.5 |
| 32 | M6×1 | 7 | 14 | M5×0.8 | 60 | 11 | 31(37) | 15 | 0 -0.05 | 24 | Φ5H9 | +0.003 0 | deep 5 | 40±0.1 | 12±0.02 | 23±0.02 | 46 | 26 | 24 | 3.3 | 11.5 |
| 40 | M8×1.25 | 9 | 17 | M5×0.8 | 72 | 12 | 38(45) | 18 | 0 -0.05 | 28 | Φ5H9 | +0.003 0 | deep 5 | 48±0.1 | 14±0.02 | 29±0.02 | 56 | 32 | 29.4 | 3.7 | 13 |
