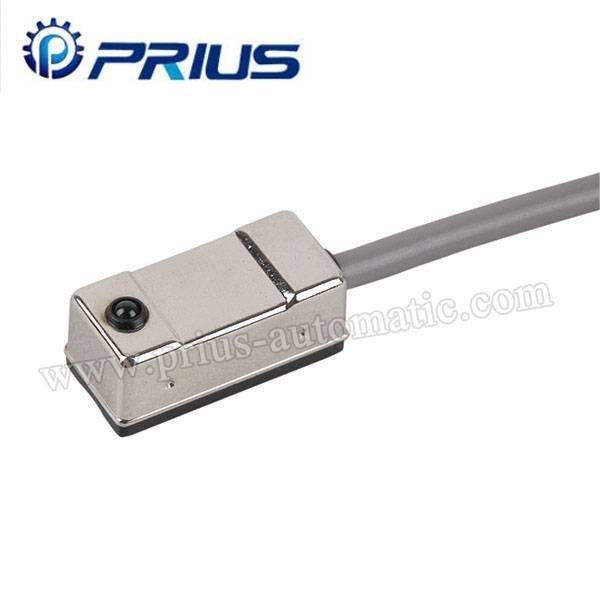

XYC-21 Magnetic Switch Sensor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Specification Model: | XYC-21R XYC-21N XYC-21P | Characteristics: | Wiring Method,Array,SPST,Solid State Output, Normally Open,Array,5~240VDC/AC 5~30VDC,Array,Array,- 15mA @ 24V DC Max.,Array,- 0.01 MA Max. |
|---|---|---|---|
| FOB Price: | Negotiation | Min.Order Quantity: | 10PCS |
| Port: | NingBo Or ShangHai |
Specification
| Model | XYC-21R | XYC-21N | XYC-21P | |
| Characteristics | Connect Diagram | |||
| Wiring Method | 2-Wire Type | 3-Wire Type | ||
| Switching Logic | SPST Nomally Open | Solid State Output, Normally Open | ||
| Sensor Type | Reed Switch | NPN Current Sinking | PNP Current Sourcing | |
| Operating Voltage | 5~240V DC/AC | 5~30V DC | ||
| Max. Switching Current | 100mA max. | 200mA max. | ||
| Contact Rating | 10W max. | 6W max. | ||
| Current Consumption | - | 15mA @ 24V DC max. | ||
| Voltage Drop | 3.5V max. | 1.5V max. | ||
| Leakage Current | - | 0.01 mA max. | ||
| Indicator | LED / Red LED | LED / Red LED | LED / Green LED | |
| Cable | Ф4.0，2C，PVC | Ф4.0，3C，PVC | ||
| Max. Operating Frequency | 200HZ | 1000HZ | ||
| Temperature Range | -10~70℃ | |||
| Shock | 30G | 50G | ||
| Vibration | 9G | |||
| Enclosure Classification | IEC 529 IP67 (NEMA 6) | |||
| Protection Circuit | - | With Protection | ||
