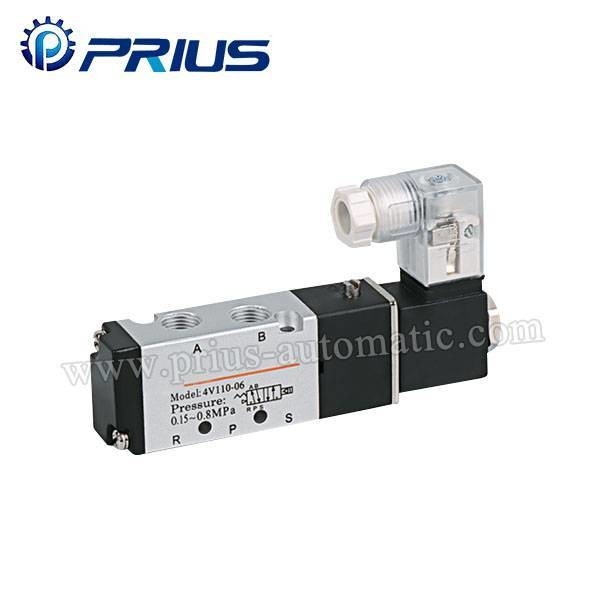

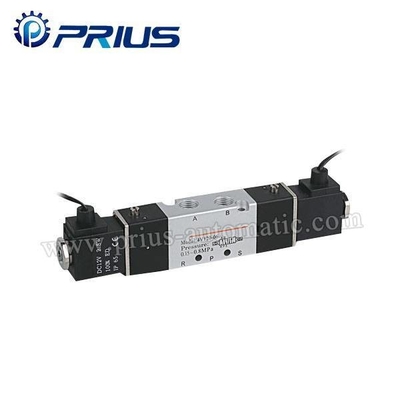

4V100 Electromagnetic Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ordering Code: | Array,Array,Array,Array,Array,Array,Array,Array | FOB Price: | Negotiation |
|---|---|---|---|
| Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Ordering Code
Specification
| Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |

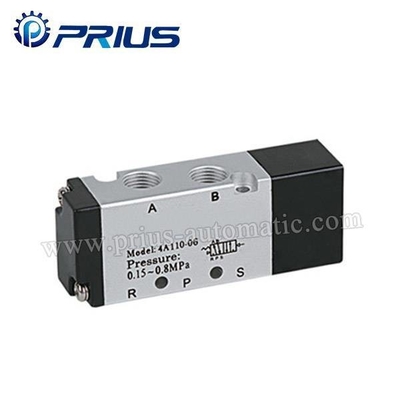

| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
| Valve Type | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | ||||||
| Effective Sectional Area | 10m㎡(CV=0.56) | 7m㎡(CV=0.40) | 12m㎡(CV=0.67) | 9m㎡(CV=0.5) | ||||||
| Model | 3V110-M5 | 3V120-M5 | 3A110-M5 | 3A120-M5 | 3V110-06 | 3V120-06 | 3A110-06 | 3A120-06 | ||
| Valve Type | 3/2 Way | |||||||||
| Effective Sectional Area | 10mm2(CV=0.56) | 12mm2(CV=0.67) | ||||||||
| Port Size | Air Inlet=Air Outlet=Exhaust=M5×0.8 | Air Inlet=Air Outlet=Exhaust=G1/8″ | ||||||||
| Working Medium | 40 Micron Filtered Air | |||||||||
| Motion Pattern | Inner Guide Type | |||||||||
| Working-pressure | 0.15~0.8MPa | |||||||||
| Max. Pressure Resistance | 1.2MPa | |||||||||
| Operating Temperature | 5~50℃ | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:2.8VA DC:2.8W | |||||||||
| Insulation & Protection Class | F(class) IP65 | |||||||||
| Wiring Form | Lead Wire or Connector type | |||||||||
| Highest Action Frequency | 5 Cycle / Sec | |||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||
Overall Dimension
