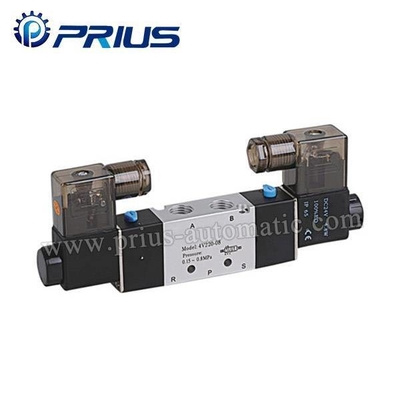

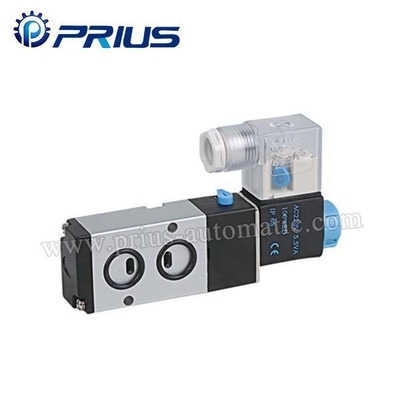

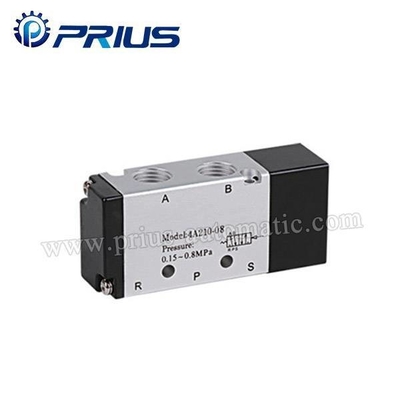

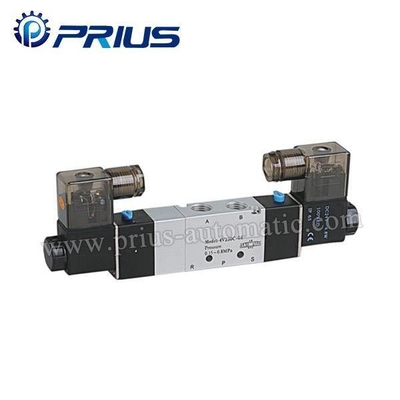

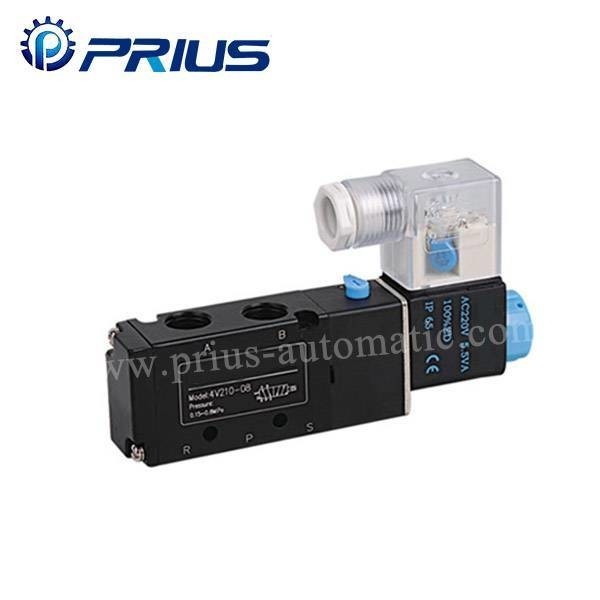

4V200 Solenoid Valve
|
Product Details:
|
Detailed Product Description
| Ordering Code Specification Models: | 4V210-06,4V220-06,4V230C-06,4V230E-06,4V230P-06,4V210-08,4V220-08,4V230C-08,4V230E-08,4V230P-08,4A210-06,4A220-06,4A230C-06,4A230E-06,4A230P-06,4A210-08,4A220-08,4A230C-08,4A230E-08,4A230P-08,3V210-06,3V220-06,3A210-06,3A220-06,3V210-08,3V220-08,3A210-08,3 | Valve Types: | 5/2 Way,5/3 Way,3/2 Way |
|---|---|---|---|
| Effective Sectional Areas: | 14m㎡(CV=0.78),12m㎡(CV=0.67),16m㎡(CV=0.89),12m㎡(CV=0.67),14m㎡ |
Ordering Code
Specification
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
| Valve Type | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | ||||||
| Effective Sectional Area | 14m㎡(CV=0.78) | 12m㎡(CV=0.67) | 16m㎡(CV=0.89) | 12m㎡(CV=0.67) | ||||||
| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 | ||
| Valve Type | 3/2 Way | |||||||||
| Effective Sectional Area | 14m㎡(CV=0.78) | 16m㎡(CV=0.89) | ||||||||
| Port Size | Air Inlet=Air Outlet=Exhaust=G1/8″ | Air Inlet=Air Outlet=G1/4″ Exhaust=G1/8″ | ||||||||
| Working Medium | 40 Micron Filtered Air | |||||||||
| Motion Pattern | Inner Guide Type | |||||||||
| Working-pressure | 0.15~0.8MPa | |||||||||
| Max. Pressure Resistance | 1.2MPa | |||||||||
| Operating Temperature | 5~50℃ | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||
| Insulation & Protection Class | F(class) IP65 | |||||||||
| Wiring Form | Lead Wire or Connector type | |||||||||
| Highest Action Frequency | 5 Cycle / Sec | |||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||
Overall Dimension
少一张。
