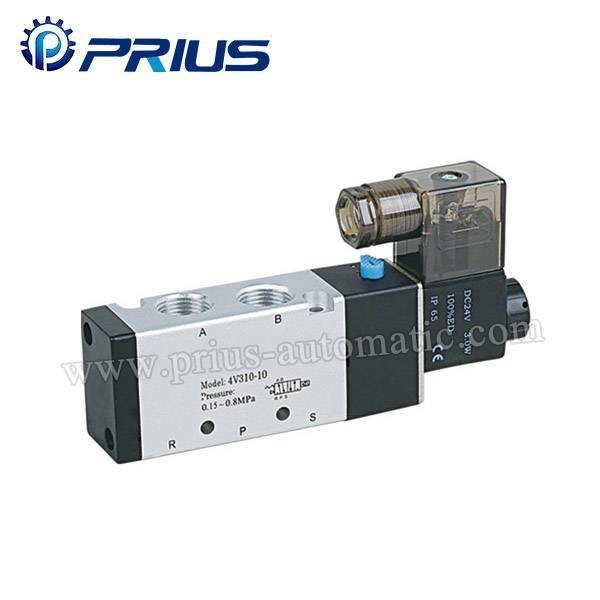

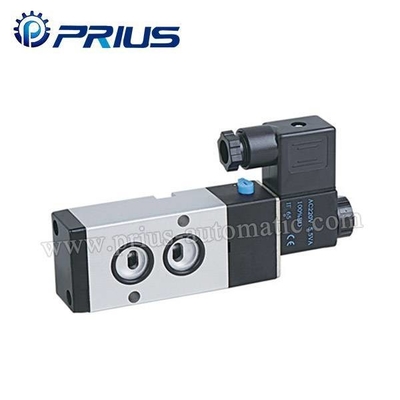

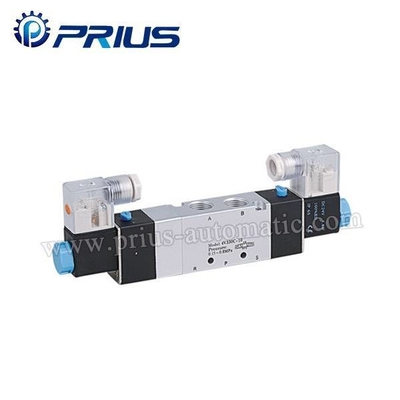

4V300 Solenoid Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Short Description: | Ordering Code Specification Model 4V310-08 4V320-08 4V330C-08 4V330E-08 4V330P-08 4V310-10 4V320-10 4V330C-10 4V330E-10 4V330P-10 4A310-08 4A320-08 4A330C-08 4A330E-08 4A330P-08 4A310-10 4A320-10 4A330C-10 4A330E-10 4A330P-10 Valve Type 5/2 Way 5/3 Way 5/2 | FOB Price: | Negotiation |
|---|---|---|---|
| Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Ordering Code
Specification
| Model | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 |
| 4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A330C-10 | 4A330E-10 | 4A330P-10 | |
| Valve Type | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | ||||||
| Effective Sectional Area | 25m㎡(CV=1.40) | 18m㎡(CV=1.00) | 30m㎡(CV=1.68) | 18m㎡(CV=1.00) | ||||||
| Model | 3V310-08 | 3V320-08 | 3A310-08 | 3A320-08 | 3V310-10 | 3V320-10 | 3A310-10 | 3A320-10 | ||
| Valve Type | 3/2 Way | |||||||||
| Effective Sectional Area | 25m㎡(CV=1.40) | 30m㎡(CV=1.68) | ||||||||
| Port Size | Air Inlet=Air Outlet=Exhaust=G1/4″ | Air Inlet=Air Outlet=G3/8″ Exhaust=G1/4″ | ||||||||
| Working Medium | 40 Micron Filtered Air | |||||||||
| Motion Pattern | Inner Guide Type | |||||||||
| Working-pressure | 0.15~0.8MPa | |||||||||
| Max. Pressure Resistance | 1.2MPa | |||||||||
| Operating Temperature | 5~50℃ | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||
| Insulation & Protection Class | F(class) IP65 | |||||||||
| Wiring Form | Lead Wire or Connector type | |||||||||
| Highest Action Frequency | 5 Cycle / Sec | |||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||
Overall Dimension
