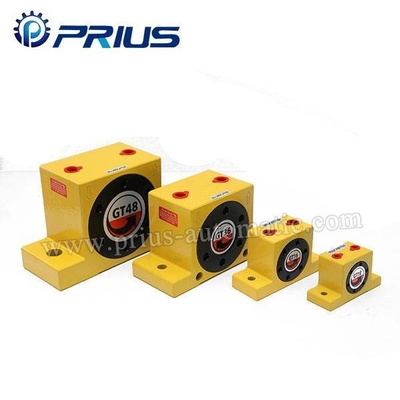

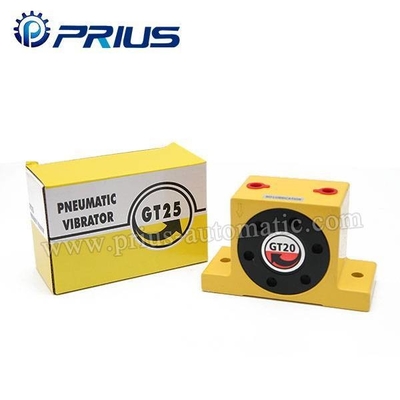

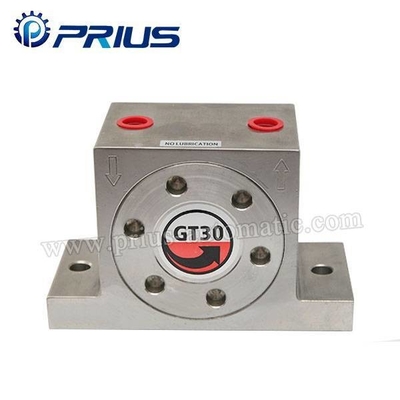

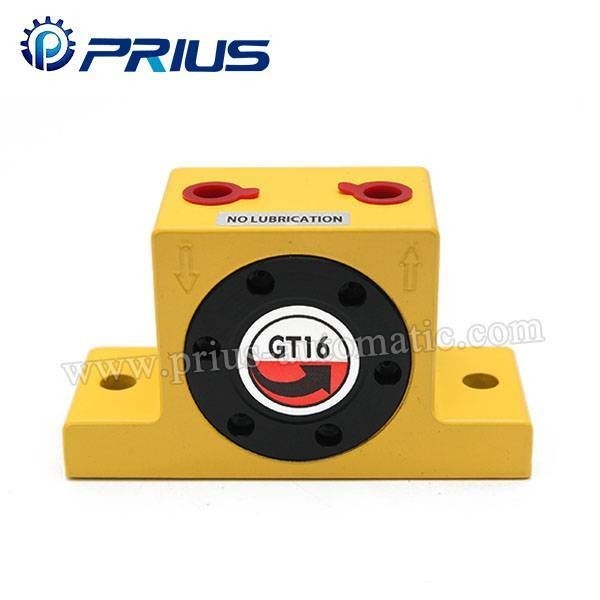

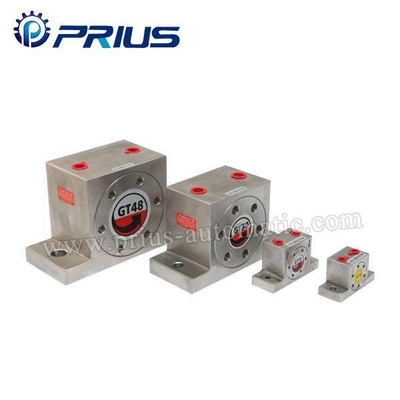

GT series Pneuamtic Gear Vibrator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Short Description: | Product Features Vibration Intensity Can Be Adjusted On Air Pressure,can Immediately Start,stop,fast,low-noise,bibration Force,security. Application Feed Material Conveyor,vibrating Screening,vibrating Hopper,to Help Fill Packaging,foundry Sand Mold Vibrat | FOB Price: | Negotiation |
|---|---|---|---|
| Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Product Features
Vibration intensity can be adjusted on air pressure,can immediately start,stop,fast,low-noise,bibration force,security.
Application
Feed material conveyor,vibrating screening,vibrating hopper,to help fill packaging,foundry sand mold vibration.
Works
Copper eccentric gear installed counterweight impact ai intake charge into the gear thrust gear rotates,the eccentric rotation of the centrifugal weight with vibration,the gear driven by a bearing,low noise.
Dimensions Table
| Type | A | B | C | D | E | F | G | P/O | Weight(g) |
| GT-4 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
| GT-6 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
| GT-8 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
| GT-10 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
| GT-13 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
| GT-16 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
| GT-20 | 104 | 82 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
| GT-25 | 104 | 82 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
| GT-32 | 130 | 103 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
| GT-36 | 130 | 103 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
| GT-40 | 152 | 122 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
| GT-48 | 152 | 122 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
| GT-60 | 195 | 140 | 96 | 21 | 30 | 95 | 240 | 1/2 | 5590 |
Technical parameters
| Type | Frequency(V.P.M) | Vibration power(N) | Air consumption(/min) | ||||||
| 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | |
| GT-4 | 11.500 | 12.500 | 13.500 | 130 | 165 | 210 | 30 | 40 | 50 |
| GT-6 | 11.500 | 12.500 | 13.500 | 130 | 165 | 210 | 30 | 40 | 50 |
| GT-8 | 34.850 | 42.000 | 45.500 | 980 | 2.1 | 2.8 | 46 | 80 | 112 |
| GT-10 | 27.500 | 35.000 | 37.500 | 840 | 1.39 | 2.4 | 46 | 80 | 112 |
| GT-13 | 26.000 | 30.000 | 33.000 | 1.400 | 2.440 | 3.730 | 120 | 200 | 290 |
| GT-16 | 17.000 | 21.500 | 24.000 | 1.220 | 2.090 | 3.160 | 120 | 200 | 290 |
| GT-20 | 17.000 | 20.000 | 23.000 | 2.170 | 4.040 | 5.520 | 185 | 325 | 455 |
| GT-25 | 12.000 | 15.500 | 17.000 | 2.120 | 3.510 | 5.070 | 185 | 325 | 455 |
| GT-32 | 13.000 | 14.000 | 16.000 | 3.380 | 5.430 | 7.540 | 330 | 530 | 745 |
| GT-36 | 7.800 | 10.000 | 13.000 | 3.300 | 5.000 | 7.150 | 330 | 530 | 745 |
| GT-40 | 7.500 | 8.800 | 9.500 | 4.350 | 7.350 | 9.850 | 408 | 428 | 680 |
| GT-48 | 5.800 | 7.500 | 9.700 | 4.950 | 7.750 | 10.6007 | 408 | 428 | 680 |
| GT-60 | 4.758 | 6.530 | 8.515 | 5.700 | 9.800 | 11.150 | 505 | 600 | 920 |
