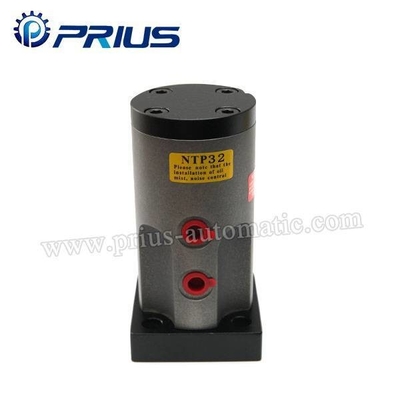

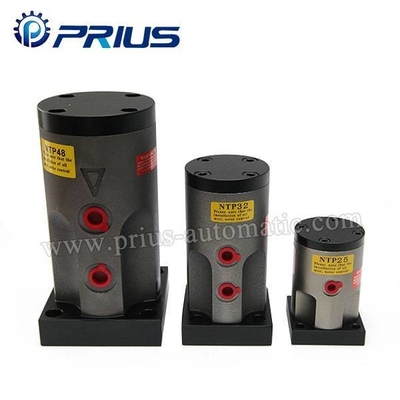

NTP series Piston Reciprocating Type Ball Vibrator
|
Product Details:
|
Detailed Product Description
| Product_feature: | Big Power With Lower Noise. Standard Frequency Is From 43 To 146 Times Per Minute. Excitation Force Is From 150 N To 2039 N. The Frequency And Vibration Amplitude Can Be Adjusted Via Regulating The Working Pressure. The Normal Maximum Working Pressure Is 1 | Application_examples: | Hopper Feed,Casting Industry,Pipelining,Compaction,Screening |
|---|---|---|---|
| FOB_price: | Negotiation | Min_order_quantity: | 10PCS |
| Supply_ability: | 10000 Piece/Pieces Per Month | Port: | NingBo Or ShangHai |
| Payment_terms: | T/T,L/C,PAYPAL |
Product feature:
Big power with lower noise.
Standard frequency is from 43 to 146 times per minute.
Excitation force is from 150 N to 2039 N.The frequency and vibration amplitude can be adjusted via regulating the working pressure.
The normal maximum working pressure is 150 degrees centigrade.
(We can also make special type,such as 200 degrees centigrade)
The pneumatic hammer can be used for severe environment.
Application Examples.
Hopper feed,Casting industry,Pipelining,Compaction,Screening,Conveyer,etc
Dimensions
Technical parameters
| Type | Frequency(V.P.M) | Vibration power(N) | Air consumption(/min) | ||||
| 2bar | 4bar | 6bar | 2bar | 4bar | 6bar | 0.2Mpa | |
| NTP25 | 5.840 | 6.950 | 8.780 | 265 | 435 | 825 | 33-108 |
| NTP32 | 2.950 | 4.075 | 5.045 | 285 | 605 | 925 | 50-198 |
| NTP48 | 2.610 | 3.450 | 4.310 | 780 | 1.300 | 2.030 | 96-336 |
| Type | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G | H(mm) | K(mm) | L(mm) | N | Weight(kg) |
| NTP25 | 90 | 60 | 46 | 6.5 | 36 | 14.5 | G1/8″ | 15 | 8 | 51 | G1/8″ | 0.61 |
| NTP32 | 140 | 75 | 51 | 11 | 48 | 32 | G1/4″ | 20 | 10 | 70 | G1/4″ | 1.47 |
| NTP48 | 194 | 100 | 78 | 13 | 60 | 51 | G3/8″ | 25 | 15 | 95 | G3/8″ | 3.95 |
