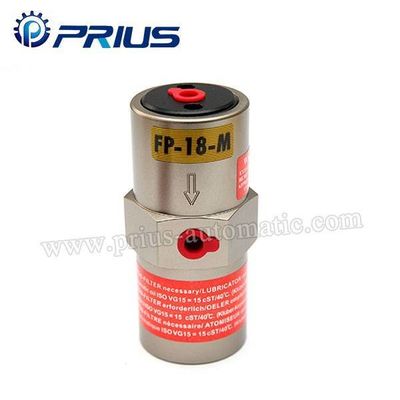

FP-M series Piston Type Pneumatic Hammer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Features: | Big Power,Lower Noise,10 To 60 Times Per Minute,484 N To 13800 N,Frequency And Vibration Amplitude Can Be Adjusted,150 Degrees Centigrade,200 Degrees Centigrade | Application Examples: | Hopper Feed,Casting Industry,Pipelining,Compaction,S... |
|---|---|---|---|
| FOB Price: | Negotiation | Min.Order Quantity: | 10PCS |
| Port: | NingBo Or ShangHai |
Product Features:
Big power with lower noise
Standard frequency is from 10 to 60 times per minute.
Excutation force is from 484 N to 13800 N
The frequency and vibration amplitude can be adjusted via regulating the working pressure.
The normal maximum working pressure is 150 degrees centigrade.
(We can also make special type,such as 200 degrees centigrade).
(We can also make special type,such as 200 degrees centigrade).
Application Examples:
Hopper feed,Casting industry,Pipelining,Compaction,Screening,Conveyer,etc
Structure
Aluminum shell with special high grade grease,long lifetime,is suitable for different application situation
Dimensions
Aluminum shell and base
Lead bronze piston
Steel spring for starting equipment
Noise reducing and exhausting system
Female thread hole for installing
Technical parameters：
| Type | Frequency*1000 | Vibration power(N) | Air consumption(/min) | A | C | D | E | F | |||
| Length | Inlet | Thread | SW | Outelt | |||||||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars | mm | mm | ||||
| FP-12-M | 5 | 6.7 | 34 | 74 | 0.5 | 19 | 81 | 1/8″ | M-8 | 34 | 1/8″ |
| FP-18-M | 4 | 5.9 | 68 | 188 | 4 | 52 | 94 | 1/8″ | M-10 | 42 | 1/8″ |
| FP-25-M | 3 | 4.2 | 142 | 504 | 23 | 87 | 99 | 1/8″ | M-12 | 50 | 1/4″ |
| FP-35-M | 3 | 4.6 | 248 | 1080 | 24 | 141 | 109 | 1/4″ | M-12 | 65 | 1/4″ |
