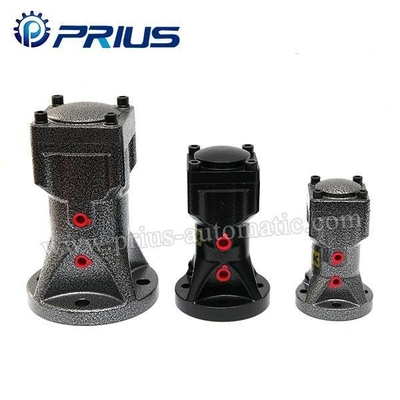

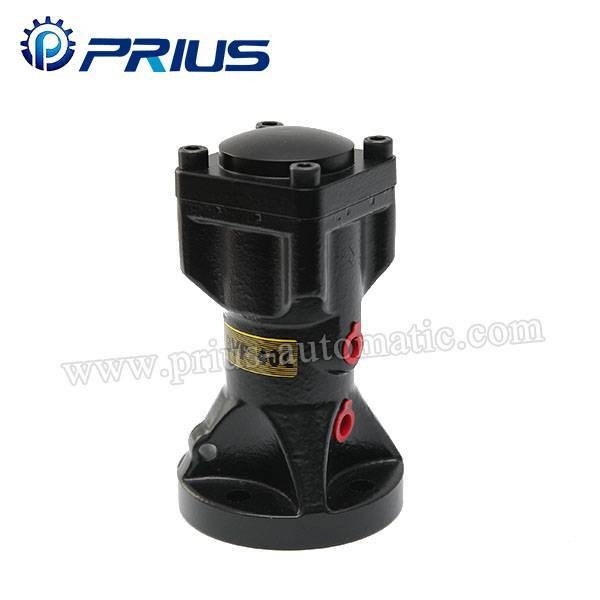

BVP series Piston Type Pneumatic Hammer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Short Description: | Product Featues: Vibration Intensity Can Be Adjuster Based On Air Pressure,can Immediately Start,stop,fast,low-noise,vibration Force,security. Application: Feed Material Conveyor,vibrating Sereening,vibrating Hopper,to Helpfill Packaging,foundry Sand Mol | Dimensions: | Array |
|---|---|---|---|
| FOB Price: | Negotiation | Min.Order Quantity: | 10 |
| Port: | NingBo Or ShangHai |
Product Featues:
Vibration intensity can be adjuster based on air pressure,can immediately start,stop,fast,low-noise,vibration force,security.
Application:
Feed material conveyor,vibrating sereening,vibrating hopper,to helpfill packaging,foundry sand mold bibration.
Dimensions:
Technical praameters:
| Type | Requency(V.P.M) | Vibration power(N) | 耗气量 | weight | A | B | C | D | H | IN | OUT | ||||
| 2Mpa | 4Mpa | 6Mpa | 2Mpa | 4Mpa | 6Mpa | L/min | KG | ||||||||

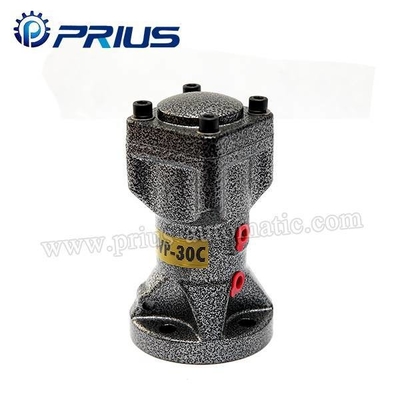

| BVP-30C | 1760 | 2300 | 2850 | 195 | 380 | 560 | 230 | 0.9 | 128 | 90 | 68 | 18 | 12 | 1/4″ | 1/4″ |
| BVP-40C | 1330 | 1670 | 1870 | 270 | 530 | 720 | 250 | 1.9 | 160 | 100 | 78 | 18 | 12 | 1/4″ | 1/4″ |
| BVP-60C | 1000 | 1220 | 1350 | 400 | 760 | 1000 | 270 | 4.5 | 208 | 140 | 105 | 20 | 16 | 1/4″ | 1/4″ |
