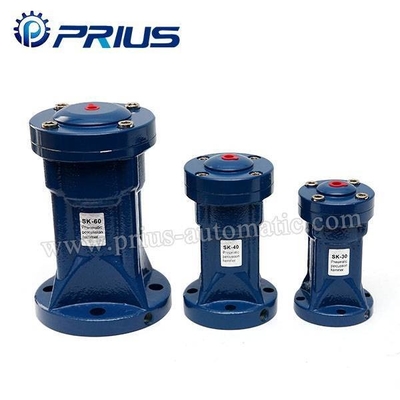

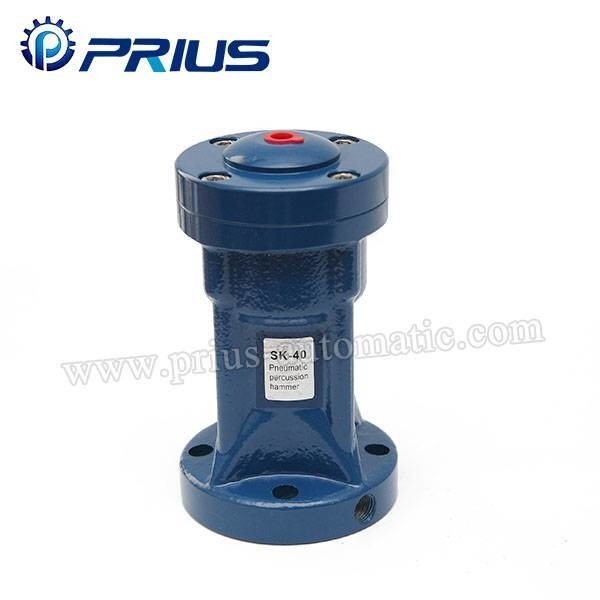

SK Series Pneumatic Percussion Hammer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Feature: | The Main Characteristics Air:magnetic Impact Of Large Powder Falling Effect;air Consumption, Low Operating Cost, Energy-saving Effect Is Good; Percussion Interval Adjustable; Quality, Reliable, Low Failure Rate; Structure Is Simple, Easy Removal; Innovativ | FOB Price: | Negotiation |
|---|---|---|---|
| Min.Order Quantity: | 10PCS | Port: | NingBo Or ShangHai |
Feature:
The main characteristeristics air:magnetic impact of large powder falling effect;airconsumption,low operating cost,
energy-saving effect is goof; percussion interval adjustable;quality,relrable,low failure rate;structure is simple,easy removal;
innovative designs,chic; piston impate resistance,(can be customized explosion proor), Widely used pesticides,mining,
environmental protection and other industries, is powerful powerful powerful powder processing line auxiliary equipment.
Dimensions:
Technical praameters:
| Type | A | B | C | D | E | G | H | L | S | T | Y | R |
| SK-30 | 75 | 10 | 82 | 13 | 9 | G1/8 | 132 | 68 | 6 | 50 | 27 | G1/4 |
| SK-40 | 90 | 12 | 97 | 18 | 11 | G1/4 | 162 | 78 | 10 | 60 | 34 | G1/4 |
| SK-60 | 121 | 13 | 143 | 19 | 15 | G1/4 | 215 | 100 | 10 | 60 | 48 | G1/4 |
| SK-80 | 160 | 17 | 170 | 20 | 17 | G3/8 | 260 | 140 | 14 | 90 | 70 | G3/8 |
| SK-100 | 200 | 18 | 200 | 23 | 17 | G3/8 | 318 | 160 | 18 | 90 | 70 | G3/8 |
| Type | Operating pressure | Air consumption | Wallop | Weighe | ||||||||
| (kgf/cm²） | L/pc | kgm/sec | kg | |||||||||
| SK-30 | 3~7 | 0.028 | ~0.75 | 1.1 | ||||||||
| SK-40 | 3~7 | 0.082 | ~2.2 | 2.2 | ||||||||
| SK-60 | 3~7 | 0.228 | ~7.4 | 5.1 | ||||||||
| SK-80 | 4~7 | 0.455 | ~16.4 | 11.1 | ||||||||
| SK-100 | 5~7 | 1.012 | ~30 | 37.5 | ||||||||
